10 Series 3-Hole Pressure Manifold Stopper Plate
10 Series 3-Hole Pressure Manifold Stopper Plate

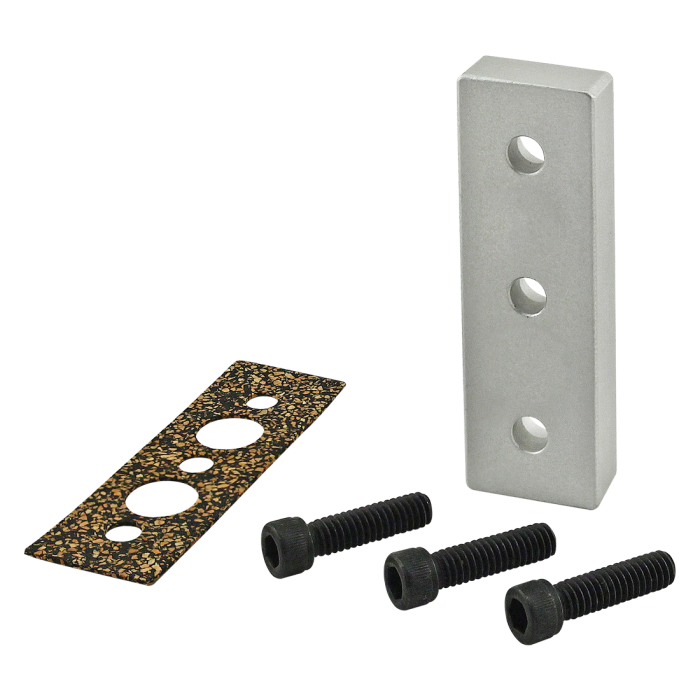

The 3-hole pressure manifold stopper plate is commonly used when adding a pressurized substance to a T-slot profile. It mounts on the profile end to form a secure seal. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
....................................................................................................................................................................................................................................................
Total Price
$11.05| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 1.000" |
| B | .500" |
| C | 1.000" |
| D | .500" |
| E (Bolt Size) | 1/4 SHCS |
| F | .490" |
| G | 3.000" |
| Weight | 0.178000 |
The 3-hole pressure manifold stopper plate is commonly used when adding a pressurized substance to a T-slot profile. It mounts on the profile end to form a secure seal. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3071 | 3 | 1/4-20 x 1.000" Socket Head Cap Screw (SHCS) |
