2172

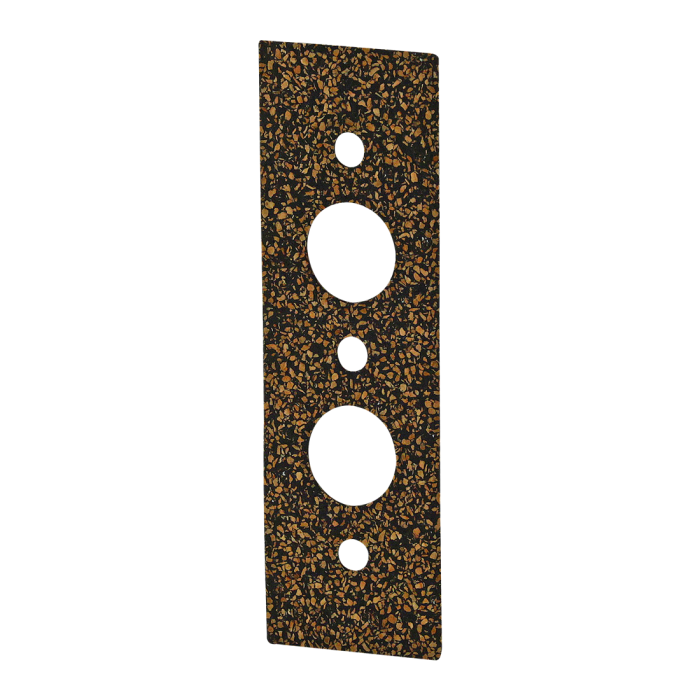

10 Series 5-Hole Rectangular Gasket for Pressure Manifold
10 Series 5-Hole Rectangular Gasket for Pressure Manifold
The 5-hole rectangular gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
| ESD Safe | No |
| Series | 10 Series |
| Material | CR-20 |
| Color | Brown |
| A | 1.000" |
| B | .500" |
| C | 1.000" |
| D | .500" |
| E | .500" |
| F | 1.000" |
| G | .515" |
| H | .265" |
| J | .030" |
| K | 3.000" |
| Weight | 0.002000 |
The 5-hole rectangular gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material CR-20 Color Brown A 1.000" B .500" C 1.000" D .500" E .500" F 1.000" G .515" H .265" J .030" K 3.000" Weight 0.002000
-
- Description
The 5-hole rectangular gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
-
