2420

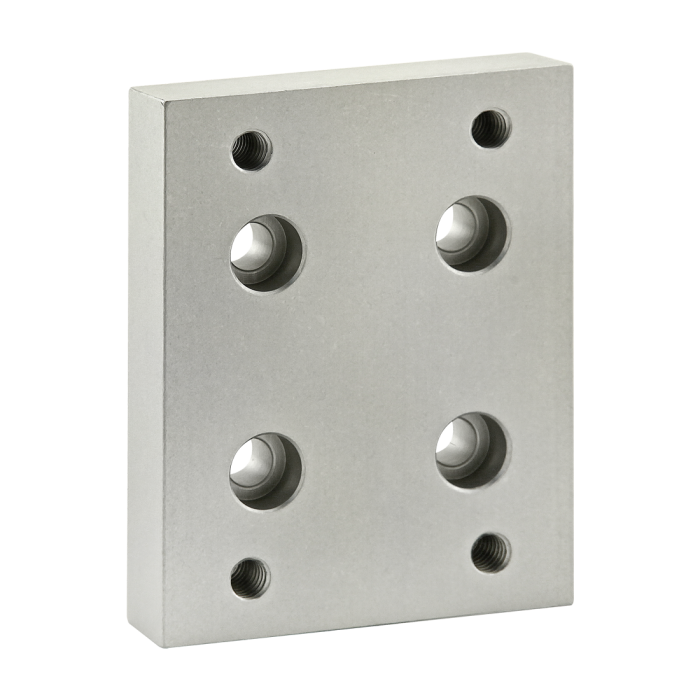

15 Series Flange Mount Caster Base Plate
15 Series Flange Mount Caster Base Plate
The flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
Total Price
................................................................................................................................| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| A | 1.750" |
| B | .625" |
| C | 3.750" |
| D | .405" |
| E | 2.940" |
| F | .750" |
| G | 1.500" |
| H | 5/16-18 |
| J | 5/16 SHCS |
| K | 1.125" |
| L | .750" |
| M | 3.000" |
| Weight | 0.762000 |
The flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3458 | 4 | Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 3123 | 4 | 5/16-18 x 1.300" Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6063-T6 Process Milled Finish Anodize Color Clear A 1.750" B .625" C 3.750" D .405" E 2.940" F .750" G 1.500" H 5/16-18 J 5/16 SHCS K 1.125" L .750" M 3.000" Weight 0.762000
-
- Description
- The flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3458 4 Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc Mount to Profile End
Series Part Number Qty Description 3123 4 5/16-18 x 1.300" Socket Head Cap Screw (SHCS)
