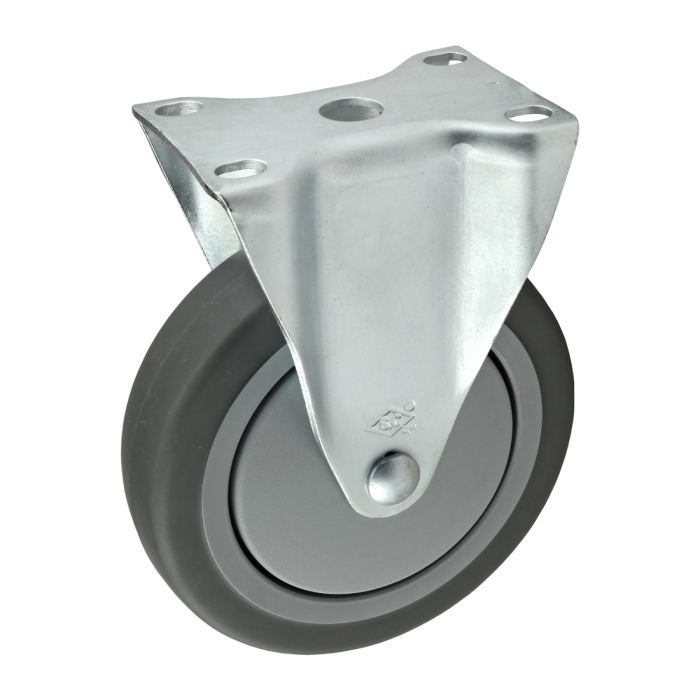

Flange Mount Rigid Caster: 5"
Flange Mount Rigid Caster: 5"
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
| ESD Safe | No |
| Series | 10 Series, 15 Series, 25 Series, 40 Series, Ready Tube |
| Material | Steel / Soft Rubber |
| Finish | Zinc |
| Color | Gray |
| A | 3.625" (92.08mm) |
| B | 3.000" (76.20mm) |
| C | 2.875" (73.03mm) |
| D | 2.700" (68.58mm) |
| E | 1.750" (44.45mm) |
| F | .313" (7.94mm) |
| G | 6.250" (158.75mm) |
| H | 5.000" (127.00mm) |
| Load Height | 6.250" (136.36mm) |
| Load Capacity | 300.00 lb (127.01 kg) |
| Weight | 1.411000 |
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 3110 | 4 | 5/16-18 x .625" Socket Head Cap Screw (SHCS) |
  | 13-8520 | 4 | M8 x 20.00mm Socket Head Cap Screw (SHCS) |
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3960 | 2 | Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 10 Series, 15 Series, 25 Series, 40 Series, Ready Tube Material Steel / Soft Rubber Finish Zinc Color Gray A 3.625" (92.08mm) B 3.000" (76.20mm) C 2.875" (73.03mm) D 2.700" (68.58mm) E 1.750" (44.45mm) F .313" (7.94mm) G 6.250" (158.75mm) H 5.000" (127.00mm) Load Height 6.250" (136.36mm) Load Capacity 300.00 lb (127.01 kg) Weight 1.411000
-
- Description
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
-
Sugg. Hardware
Mount to Base Plate
Series Part Number Qty Description 3110 4 5/16-18 x .625" Socket Head Cap Screw (SHCS)
13-8520 4 M8 x 20.00mm Socket Head Cap Screw (SHCS)
Mount to Base Plate
Series Part Number Qty Description Mount to RT Profile
Series Part Number Qty Description 3960 2 Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc
-
