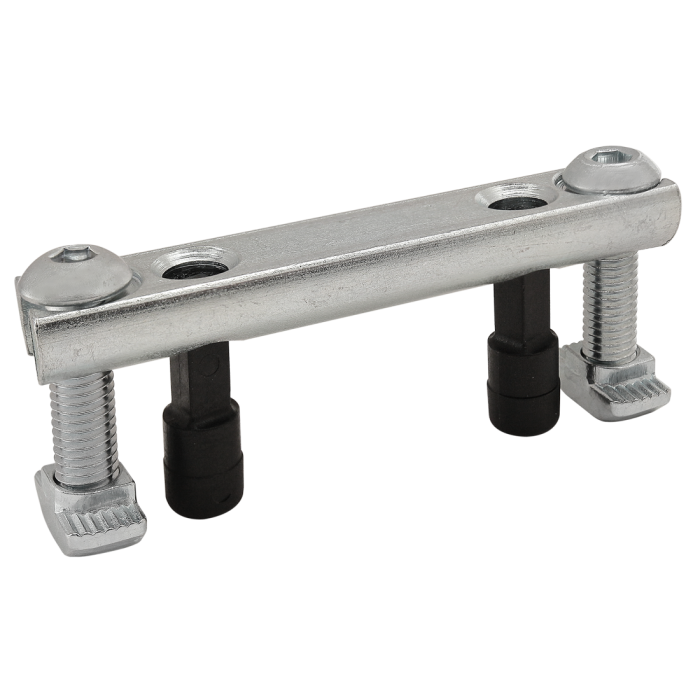

45 Series Bolt Connector
The bolt connector is an assembly connection providing an internal, long-lasting fastening method. The bolt connector loads from the end of the profile and forms a 90 degree connection. This fastening method requires only an access hole machining service to the mounting profile.
| ESD Safe | Yes |
| Series | 45 Series |
| Material | Steel |
| A | 87.00mm |
| B | 73.00mm |
| C | 14.00mm |
| D | 3.25mm |
| E | 39.25mm |
| F | 36.25mm |
| G | 10.30mm |
| H | 10.10mm |
| J | 8.80mm |
| K | 19.00mm |
| L | 5.80mm |
| M | 16.80mm |
| N | M8 X 35 |
| Weight | 0.286700 |
The bolt connector is an assembly connection providing an internal, long-lasting fastening method. The bolt connector loads from the end of the profile and forms a 90 degree connection. This fastening method requires only an access hole machining service to the mounting profile.
