9115

Product Specs

• Product Details
  •

    Series	Quick Frame
    Material	Nylon
    Process	Injection Molded
    Color	Gray
    A	1.100"
    B	1.100"
    C	.870"
    D	1.100"
    E	1.000"
    F	3.200"
    Weight	0.0610

• Description

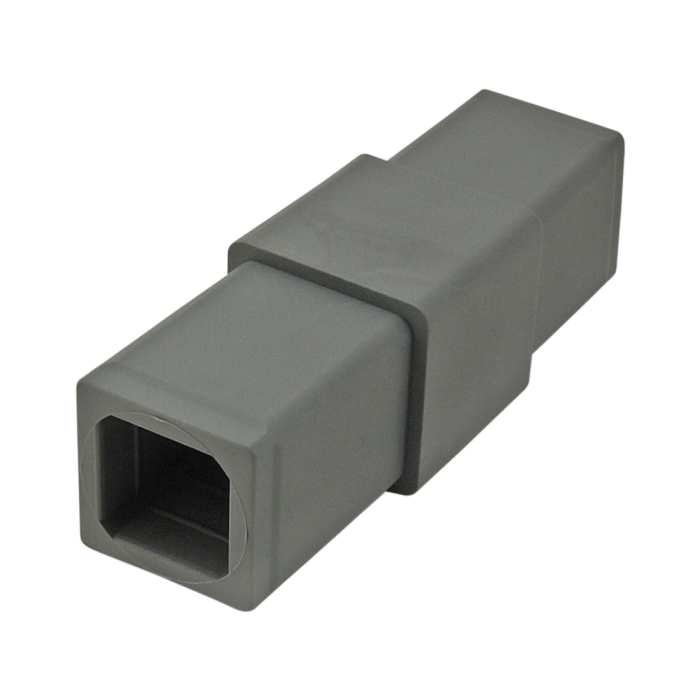

  • The 2 way - butt connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of additional hardware. It connects profiles and provides a clean, flush connection quickly and easily using only a soft-faced mallet to form light-duty yet sturdy builds. The 2 way - butt connector can also be used to connect shorter bars together where logistics or space makes it difficult to maneuver longer profiles. It requires no additional hardware and no machining services.
