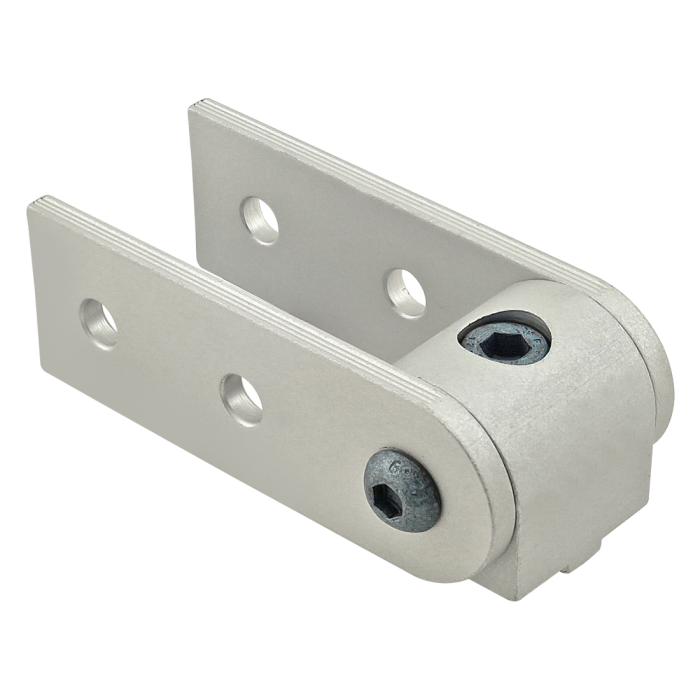

25-4197

Product Specs

• Product Details
  •

    Series	25 Series
    Material	Aluminum
    Grade	6005A – T61
    Process	Milled
    Finish	Anodize
    Color	Clear
    Nub (Qty.)	25-4187 (1)
    Arm (Qty.)	25-4196 (2)
    A	25.00mm
    B	75.00mm
    C	39.30mm
    D	25.00mm
    E	25.00mm
    F	31.88mm
    Weight	0.191600

• Description

  • The standard structural pivot assembly with dual straight arms comes preassembled with the pivot arms connected to the nub and includes the hardware to connect the nub to the mounting profile. It consists of one 0 degree, 90 degree or universal structural pivot nub and two straight structural pivot arms.

• Incl. Hardware

  • Arm to Nub

    Series	Part Number	Qty	Description
    	13-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)

    Nub to T-Slot

    Series	Part Number	Qty	Description
    	75-3415	1 Or 2	Bolt Assembly: M6 x 25.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc

• Sugg. Hardware

  • Arm to T-Slot

    Series	Part Number	Qty	Description
    	75-3404	4	Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
