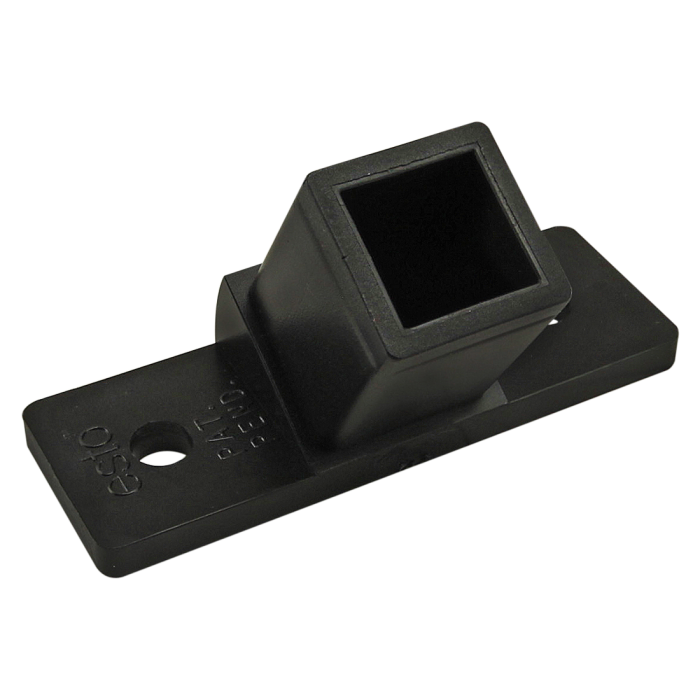

30 Degree Straight Hexagon Base Connector
30 Degree Straight Hexagon Base Connector
The 30 degree straight hexagon base connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of additional hardware. It can be used in combination with other connectors to create an enclosure or to add a 30 degree angle to any project. The 30 degree straight hexagon base connector is convenient for projects that will be attached or mounted to any flat surface. It provides a flush connection using only a soft-faced mallet to form light-duty yet sturdy builds and requires no additional hardware and no machining services.
....................................................................................................................................................................................................................................................
Total Price
$2.90| Series | Quick Frame |
| Material | Nylon |
| Process | Injection Molded |
| Color | Black |
| A | 1.000" |
| B | 1.000" |
| C | .860" |
| D | .430" |
| E | .500" |
| F | 1.000" |
| G | 3.000" |
| H | .281" |
| J | .870" |
| K | 1.100" |
| L | 30º |
| M | .190" |
| Weight | 0.043000 |
The 30 degree straight hexagon base connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of additional hardware. It can be used in combination with other connectors to create an enclosure or to add a 30 degree angle to any project. The 30 degree straight hexagon base connector is convenient for projects that will be attached or mounted to any flat surface. It provides a flush connection using only a soft-faced mallet to form light-duty yet sturdy builds and requires no additional hardware and no machining services.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series Quick Frame Material Nylon Process Injection Molded Color Black A 1.000" B 1.000" C .860" D .430" E .500" F 1.000" G 3.000" H .281" J .870" K 1.100" L 30º M .190" Weight 0.043000
-
- Description
The 30 degree straight hexagon base connector is made of nylon and is used with a Quick Frame profile which has built-in ridges that bite into the fastener to create tension without the use of additional hardware. It can be used in combination with other connectors to create an enclosure or to add a 30 degree angle to any project. The 30 degree straight hexagon base connector is convenient for projects that will be attached or mounted to any flat surface. It provides a flush connection using only a soft-faced mallet to form light-duty yet sturdy builds and requires no additional hardware and no machining services.
