2107
10 & 15 Series 90 Degree Deadbolt Latch
10 & 15 Series 90 Degree Deadbolt Latch

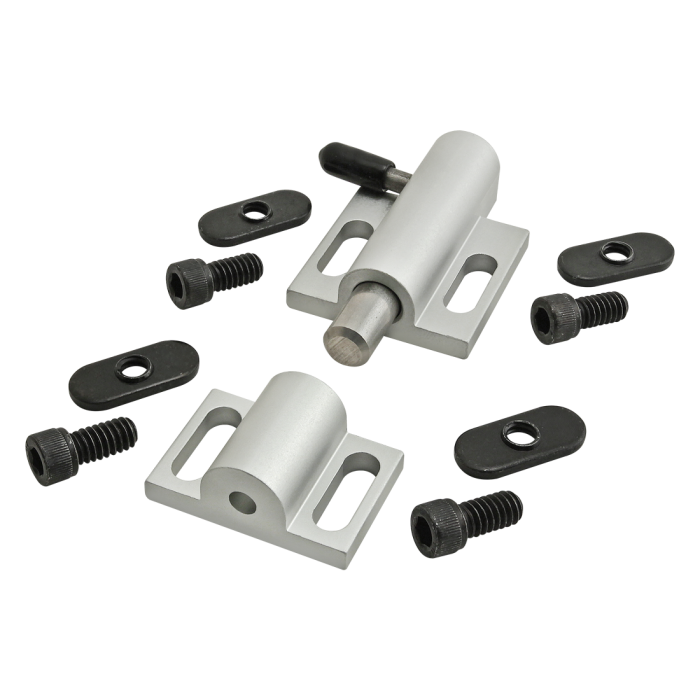

The 90 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. The pin handle is positioned at a 90 degree angle to prevent snagging. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
....................................................................................................................................................................................................................................................
Price Per Inch
$18.90
....................................................................................................................................................................................................................................................
Total Price
$18.90The 90 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. The pin handle is positioned at a 90 degree angle to prevent snagging. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 1.000" |
| B | 1.500" |
| C | .625" |
| D | .500" |
| E | .507" |
| F | .500" |
| G | 1.500" |
| H | 1.062" |
| J | .187" |
| K | .625" |
| Weight | 0.2230 |
The 90 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. The pin handle is positioned at a 90 degree angle to prevent snagging. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
  | 3062 | 4 | 1/4-20 x .500" Socket Head Cap Screw (SHCS) | |
| 3382 | 4 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series, 15 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Milled A 1.000" B 1.500" C .625" D .500" E .507" F .500" G 1.500" H 1.062" J .187" K .625" Weight 0.2230
-
- Description
- The 90 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. The pin handle is positioned at a 90 degree angle to prevent snagging. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3062 4 1/4-20 x .500" Socket Head Cap Screw (SHCS)
3382 4 1/4-20 Slide-in Economy T-Nut - Centered Thread
