30 Series Bolt Connector
30 Series Bolt Connector

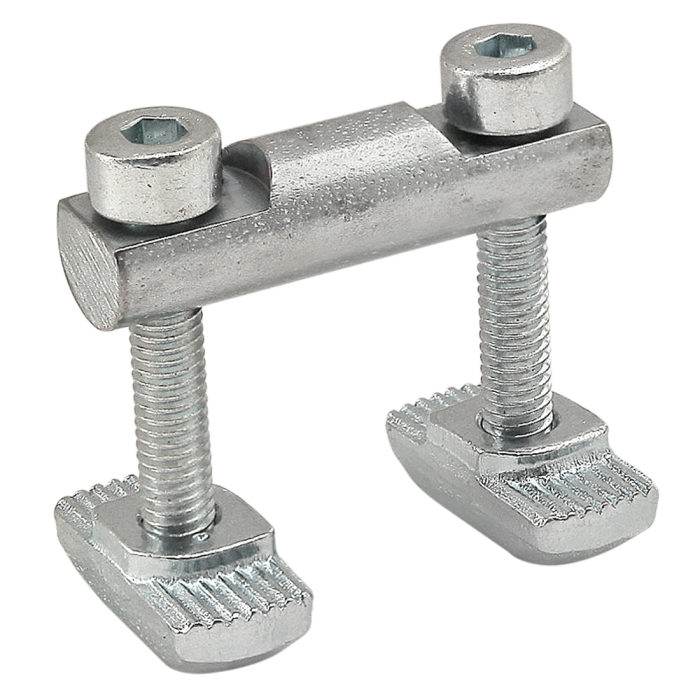

The bolt connector is an assembly connection providing an internal, long-lasting fastening method. The bolt connector loads from the end of the profile and forms a 90 degree connection. This fastening method requires only a drill through machining service to the mounting profile.
| ESD Safe | Yes |
| Series | 30 Series |
| Material | Steel |
| A | 28.00mm |
| B | 20.00mm |
| C | 2.00mm |
| D | 29.00mm |
| E | 7.70mm |
| F | 6.20mm |
| G | 16.00mm |
| H | 4.40mm |
| J | 8.00mm |
| K | M4 X 25mm |
| L | n/a |
| M | n/a |
| N | n/a |
| Weight | 0.053600 |
The bolt connector is an assembly connection providing an internal, long-lasting fastening method. The bolt connector loads from the end of the profile and forms a 90 degree connection. This fastening method requires only a drill through machining service to the mounting profile.
Product Specs
- Product Details
-
ESD Safe Yes Series 30 Series Material Steel A 28.00mm B 20.00mm C 2.00mm D 29.00mm E 7.70mm F 6.20mm G 16.00mm H 4.40mm J 8.00mm K M4 X 25mm L n/a M n/a N n/a Weight 0.053600
-
- Description
The bolt connector is an assembly connection providing an internal, long-lasting fastening method. The bolt connector loads from the end of the profile and forms a 90 degree connection. This fastening method requires only a drill through machining service to the mounting profile.
-
