W-4PF

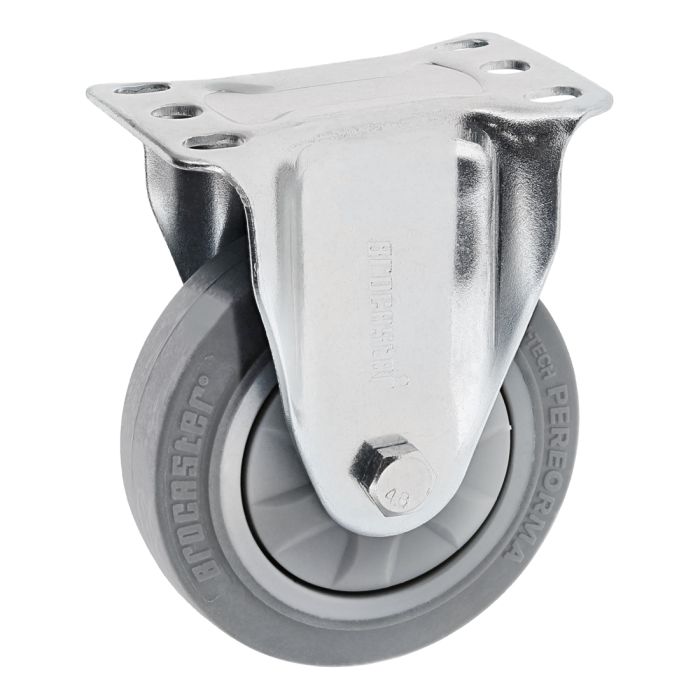

4" Rigid Plate Caster
4" Rigid Plate Caster
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
| ESD Safe | No |
| Series | Fractional, Metric, Ready Tube |
| Material | Steel / Rubber |
| Finish | Zinc |
| Color | Gray Wheels / Gray Rims |
| A | 3.740" (95.00mm) |
| B | 2.913" (74.00mm) |
| C | 2.875" (73.03mm) |
| D | 2.637" (67.00mm) |
| E | 1.732" (44.00mm) |
| F | 0.354" (9.00mm) |
| G | 5.078" (129.00mm) |
| H | 3.937" (100.00mm) |
| Load Height | N/A |
| Load Capacity | 250 lbs (113.39 kg) |
| Weight | 1.080000 |
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3110 | 4 | 5/16-18 x .625" Socket Head Cap Screw (SHCS) |
 | 13-8520 | 4 | M8 x 20.00mm Socket Head Cap Screw (SHCS) |
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3960 | 2 | Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric, Ready Tube Material Steel / Rubber Finish Zinc Color Gray Wheels / Gray Rims A 3.740" (95.00mm) B 2.913" (74.00mm) C 2.875" (73.03mm) D 2.637" (67.00mm) E 1.732" (44.00mm) F 0.354" (9.00mm) G 5.078" (129.00mm) H 3.937" (100.00mm) Load Height N/A Load Capacity 250 lbs (113.39 kg) Weight 1.080000
-
- Description
The flange mount rigid caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. This is ideal for use in industrial settings such as mobile carts and material handling solutions. It is commonly used in conjunction with swivel casters to create applications that easily pivot.
- Sugg. Hardware
-
