WF-UP
Installation Bracket for 4" Caster - UPPER

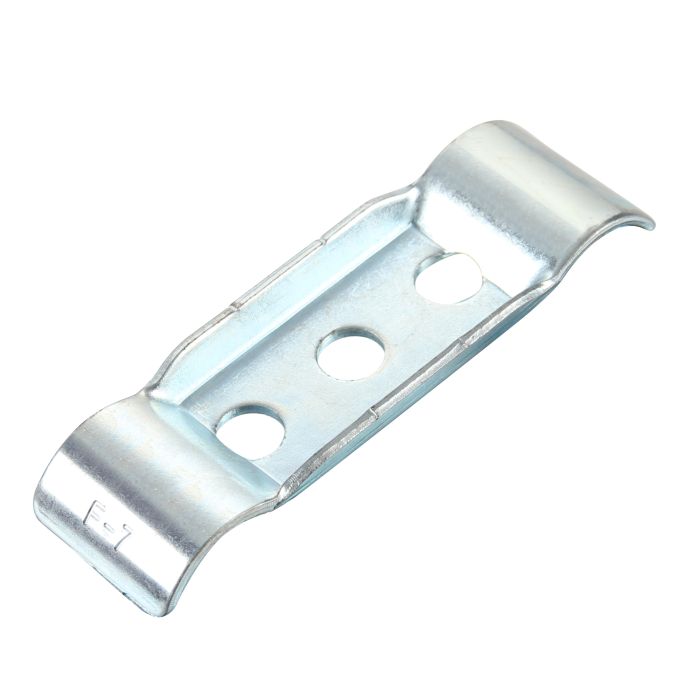

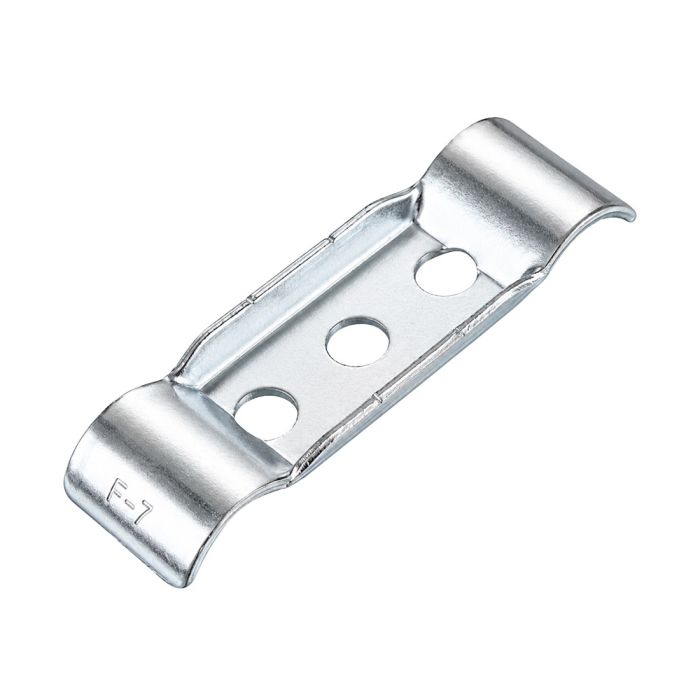

The WF-UP is a metal bracket used to secure plate casters in conjunction with the WF-LOW on Flexpipe structures, such as the W-4PSB and W-4PF.
WF-UP and the WF-LOW are installed with two M8-35B bolts and two M8-N nuts. This accessory is not for six-inch casters. The larger version of this bracket should be chosen if this is what you need. So if you are using W-6PSB or W-6PF wheels be sure to use the WF-LARGE product page.
Antistatic (ESD): Compatible with EP-96-ST and EP-96-BK
A Flexpipe Product
The WF-UP is a metal bracket used to secure plate casters in conjunction with the WF-LOW on Flexpipe structures, such as the W-4PSB and W-4PF.
WF-UP and the WF-LOW are installed with two M8-35B bolts and two M8-N nuts. This accessory is not for six-inch casters. The larger version of this bracket should be chosen if this is what you need. So if you are using W-6PSB or W-6PF wheels be sure to use the WF-LARGE product page.
Antistatic (ESD): Compatible with EP-96-ST and EP-96-BK
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 0.180000 |
| Color | Bright Zinc |
| Series | Pipe |
| Material | Steel |
| Pipe Spacing on Center | 81.50mm |
| Width | 33.00mm |
| Pipe Diameter | 28.00mm |
| Use With | 4" casters |
The WF-UP is a metal bracket used to secure plate casters in conjunction with the WF-LOW on Flexpipe structures, such as the W-4PSB and W-4PF.
WF-UP and the WF-LOW are installed with two M8-35B bolts and two M8-N nuts. This accessory is not for six-inch casters. The larger version of this bracket should be chosen if this is what you need. So if you are using W-6PSB or W-6PF wheels be sure to use the WF-LARGE product page.
Antistatic (ESD): Compatible with EP-96-ST and EP-96-BK
A Flexpipe Product
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.180000 Color Bright Zinc Series Pipe Material Steel Pipe Spacing on Center 81.50mm Width 33.00mm Pipe Diameter 28.00mm Use With 4" casters
-
- Description
The WF-UP is a metal bracket used to secure plate casters in conjunction with the WF-LOW on Flexpipe structures, such as the W-4PSB and W-4PF.
WF-UP and the WF-LOW are installed with two M8-35B bolts and two M8-N nuts. This accessory is not for six-inch casters. The larger version of this bracket should be chosen if this is what you need. So if you are using W-6PSB or W-6PF wheels be sure to use the WF-LARGE product page.
Antistatic (ESD): Compatible with EP-96-ST and EP-96-BK
A Flexpipe Product
-
