R40-MS
Track Mount Start Narrow
Track Mount Start Narrow

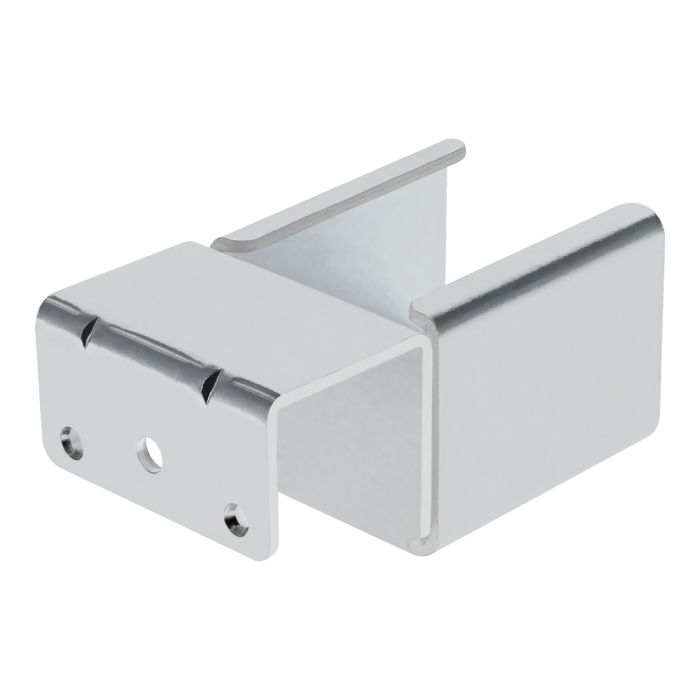

The R40-MS is a zinc-coated steel mounting bracket designed to initiate roller tracks in modular pipe systems. Ideal for industries requiring efficient material flow, it ensures electrostatic discharge (ESD) protection, making it suitable for environments handling electronic components.
- Electrostatic discharge (ESD) protection
- Serves as an anchor between the roller track and a perpendicular pipe.
- Compatible with all R40 parts and accessories
- Compatible with 10 Series, 25 Series T-Slots and 28mm pipes
A Flexpipe product
The R40-MS is a zinc-coated steel mounting bracket designed to initiate roller tracks in modular pipe systems. Ideal for industries requiring efficient material flow, it ensures electrostatic discharge (ESD) protection, making it suitable for environments handling electronic components.
- Electrostatic discharge (ESD) protection
- Serves as an anchor between the roller track and a perpendicular pipe.
- Compatible with all R40 parts and accessories
- Compatible with 10 Series, 25 Series T-Slots and 28mm pipes
A Flexpipe product
| ESD Safe | Yes |
| Weight | 0.340000 |
| Series | 10 Series, 25 Series, Pipe |
| Material | Steel |
| Color | Bright Zinc |
| A | 1.795" (45.60mm) |
| B | 1.102" (28.00mm) |
| C | 3.251" (82.60mm) |
| D | 1.968" (50.00mm) |
| E | 1.669" (42.40mm) |
| F | 0.204" (5.20mm) |
The R40-MS is a zinc-coated steel mounting bracket designed to initiate roller tracks in modular pipe systems. Ideal for industries requiring efficient material flow, it ensures electrostatic discharge (ESD) protection, making it suitable for environments handling electronic components.
- Electrostatic discharge (ESD) protection
- Serves as an anchor between the roller track and a perpendicular pipe.
- Compatible with all R40 parts and accessories
- Compatible with 10 Series, 25 Series T-Slots and 28mm pipes
A Flexpipe product
Mount to T-Slot or Pipe
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3042 | 1 | 10-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3205 | 1 | 10 Series 10-32 Standard Slide-in T-Nut |
| 3055 | 1 | .221" ID Washer |
 | 11-5310 | 1 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 3871 | 1 | 10 Series M5 Standard Slide-in T-Nut |
| 11-6040 | 1 | 5.30mm ID Washer |
 | F-A858 | 1 | #8-5/8" Self Drilling Screw with Square Bit Head |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.340000 Series 10 Series, 25 Series, Pipe Material Steel Color Bright Zinc A 1.795" (45.60mm) B 1.102" (28.00mm) C 3.251" (82.60mm) D 1.968" (50.00mm) E 1.669" (42.40mm) F 0.204" (5.20mm)
-
- Description
The R40-MS is a zinc-coated steel mounting bracket designed to initiate roller tracks in modular pipe systems. Ideal for industries requiring efficient material flow, it ensures electrostatic discharge (ESD) protection, making it suitable for environments handling electronic components.
- Electrostatic discharge (ESD) protection
- Serves as an anchor between the roller track and a perpendicular pipe.
- Compatible with all R40 parts and accessories
- Compatible with 10 Series, 25 Series T-Slots and 28mm pipes
A Flexpipe product
-
Sugg. Hardware
Mount to T-Slot or Pipe
Series Part Number Qty Description 3042 1 10-32 x .375" Button Head Socket Cap Screw (BHSCS)
3205 1 10 Series 10-32 Standard Slide-in T-Nut
3055 1 .221" ID Washer
11-5310 1 M5 x 10.00mm Button Head Socket Cap Screw (BHSCS)
3871 1 10 Series M5 Standard Slide-in T-Nut
11-6040 1 5.30mm ID Washer
F-A858 1 #8-5/8" Self Drilling Screw with Square Bit Head
-
CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
