R40-DS
Track Mount Drop Stop Narrow
Track Mount Drop Stop Narrow

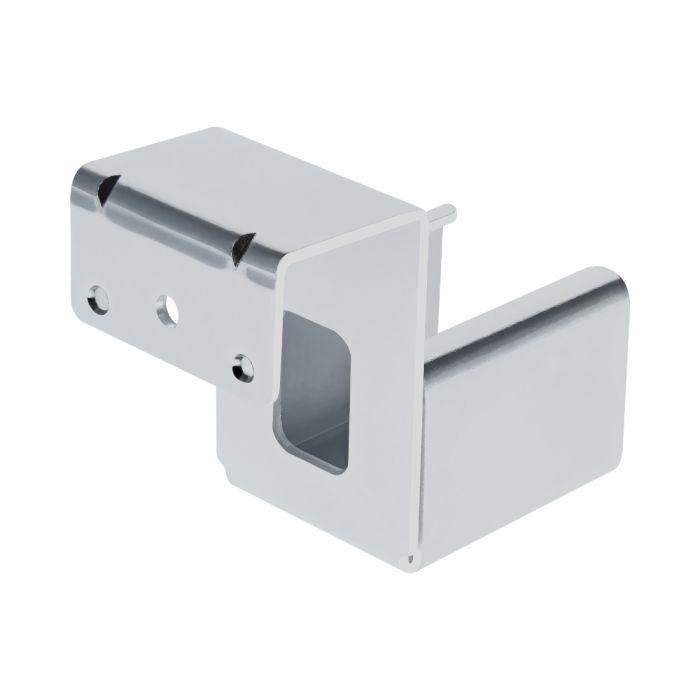

The R40-DS is an ESD-safe steel zinc track mount designed to create a 1-5/16" drop stop at the end of a R40-RT96 roller track. This component helps control the movement of containers and prevents accidental overflows.Â
- Tilts roller track for controlled flow
- Electric conductivity (ESD)
- Compatible with 10, 25 Series T-Slots and 28mm pipes with a F-A858 screw
- Works with the Steel Roller Track Narrow (PN# R40-RT96)
A Flexpipe Product
The R40-DS is an ESD-safe steel zinc track mount designed to create a 1-5/16" drop stop at the end of a R40-RT96 roller track. This component helps control the movement of containers and prevents accidental overflows.Â
- Tilts roller track for controlled flow
- Electric conductivity (ESD)
- Compatible with 10, 25 Series T-Slots and 28mm pipes with a F-A858 screw
- Works with the Steel Roller Track Narrow (PN# R40-RT96)
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 0.400000 |
| Series | 10 Series, 25 Series, Pipe |
| Material | Steel |
| Color | Bright Zinc |
| A | 1.795" (45.60mm) |
| B | 1.102" (28.00mm) |
| C | 3.251" (82.60mm) |
| D | 1.968" (50.00mm) |
| E | 1.181" (30.00mm) |
| F | 2.846" (72.30mm) |
| G | 0.204" (5.20mm) |
The R40-DS is an ESD-safe steel zinc track mount designed to create a 1-5/16" drop stop at the end of a R40-RT96 roller track. This component helps control the movement of containers and prevents accidental overflows.Â
- Tilts roller track for controlled flow
- Electric conductivity (ESD)
- Compatible with 10, 25 Series T-Slots and 28mm pipes with a F-A858 screw
- Works with the Steel Roller Track Narrow (PN# R40-RT96)
A Flexpipe Product
Mount to T-Slot or Pipe
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3042 | 1 | 10-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3205 | 1 | 10 Series 10-32 Standard Slide-in T-Nut |
 | 3055 | 1 | .221" ID Washer |
 | 11-5310 | 1 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 3871 | 1 | 10 Series M5 Standard Slide-in T-Nut |
| 11-6040 | 1 | 5.30mm ID Washer |
 | F-A858 | 1 | #8-5/8" Self Drilling Screw with Square Bit Head |
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.400000 Series 10 Series, 25 Series, Pipe Material Steel Color Bright Zinc A 1.795" (45.60mm) B 1.102" (28.00mm) C 3.251" (82.60mm) D 1.968" (50.00mm) E 1.181" (30.00mm) F 2.846" (72.30mm) G 0.204" (5.20mm)
-
- Description
The R40-DS is an ESD-safe steel zinc track mount designed to create a 1-5/16" drop stop at the end of a R40-RT96 roller track. This component helps control the movement of containers and prevents accidental overflows.Â
- Tilts roller track for controlled flow
- Electric conductivity (ESD)
- Compatible with 10, 25 Series T-Slots and 28mm pipes with a F-A858 screw
- Works with the Steel Roller Track Narrow (PN# R40-RT96)
A Flexpipe Product
-
Sugg. Hardware
Mount to T-Slot or Pipe
Series Part Number Qty Description 3042 1 10-32 x .375" Button Head Socket Cap Screw (BHSCS)
3205 1 10 Series 10-32 Standard Slide-in T-Nut
3055 1 .221" ID Washer
11-5310 1 M5 x 10.00mm Button Head Socket Cap Screw (BHSCS)
3871 1 10 Series M5 Standard Slide-in T-Nut
11-6040 1 5.30mm ID Washer
F-A858 1 #8-5/8" Self Drilling Screw with Square Bit Head
-
