EW-6PSB-KIT

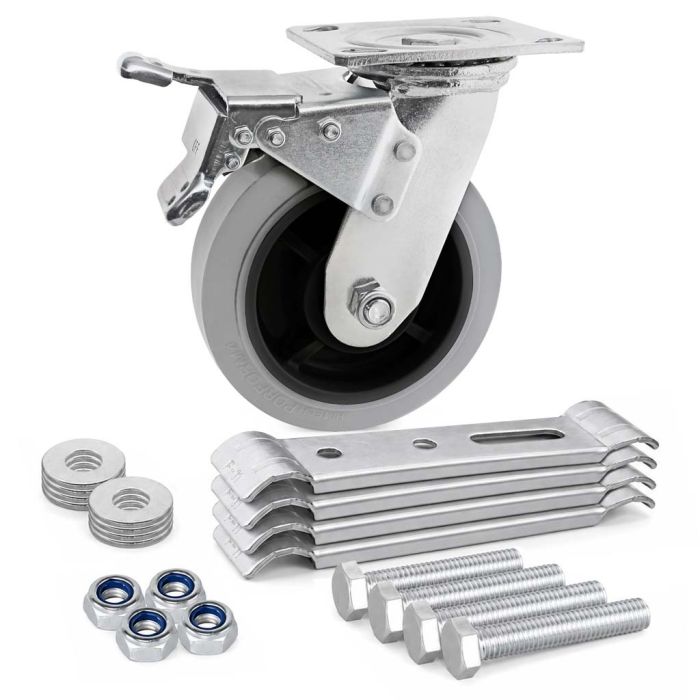

6" ESD Swivel Plate Caster with Brake - Kit
The EW-6PSB 6 inch caster features a swivel plate with a total-lock brake, a loading capacity of 500 lb (227 kg), and a maximum speed of 2.5 mph (4.02 km/h). This caster is anti-static, making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing.
To make installation easier, the EW-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N, and eight F-W516 unassembled. This caster is a substantial piece that takes up significant space and should only be used when necessary. The EW-6PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber, providing durability and reliability.
A Flexpipe Product
The EW-6PSB 6 inch caster features a swivel plate with a total-lock brake, a loading capacity of 500 lb (227 kg), and a maximum speed of 2.5 mph (4.02 km/h). This caster is anti-static, making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing.
To make installation easier, the EW-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N, and eight F-W516 unassembled. This caster is a substantial piece that takes up significant space and should only be used when necessary. The EW-6PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber, providing durability and reliability.
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 5.110000 |
| Series | Pipe |
| Type | Swivel with Brake |
| Material | Steel / Thermoplastic Rubber |
| Color | Gray Wheels / Black Rims |
| Load Capacity | 500 lbs (227kg) |
| Wheel Diameter | 6.000” (150.00mm) |
| Caster Height | 7.500” (190.00mm) |
| Wheel Width | 1.625” (42.00mm) |
| Max Speed | 2.5 mph |
The EW-6PSB 6 inch caster features a swivel plate with a total-lock brake, a loading capacity of 500 lb (227 kg), and a maximum speed of 2.5 mph (4.02 km/h). This caster is anti-static, making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing.
To make installation easier, the EW-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N, and eight F-W516 unassembled. This caster is a substantial piece that takes up significant space and should only be used when necessary. The EW-6PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber, providing durability and reliability.
A Flexpipe Product
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Weight 5.110000 Series Pipe Type Swivel with Brake Material Steel / Thermoplastic Rubber Color Gray Wheels / Black Rims Load Capacity 500 lbs (227kg) Wheel Diameter 6.000” (150.00mm) Caster Height 7.500” (190.00mm) Wheel Width 1.625” (42.00mm) Max Speed 2.5 mph
-
- Description
-
The EW-6PSB 6 inch caster features a swivel plate with a total-lock brake, a loading capacity of 500 lb (227 kg), and a maximum speed of 2.5 mph (4.02 km/h). This caster is anti-static, making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing.
To make installation easier, the EW-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N, and eight F-W516 unassembled. This caster is a substantial piece that takes up significant space and should only be used when necessary. The EW-6PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber, providing durability and reliability.
A Flexpipe Product
-
-
