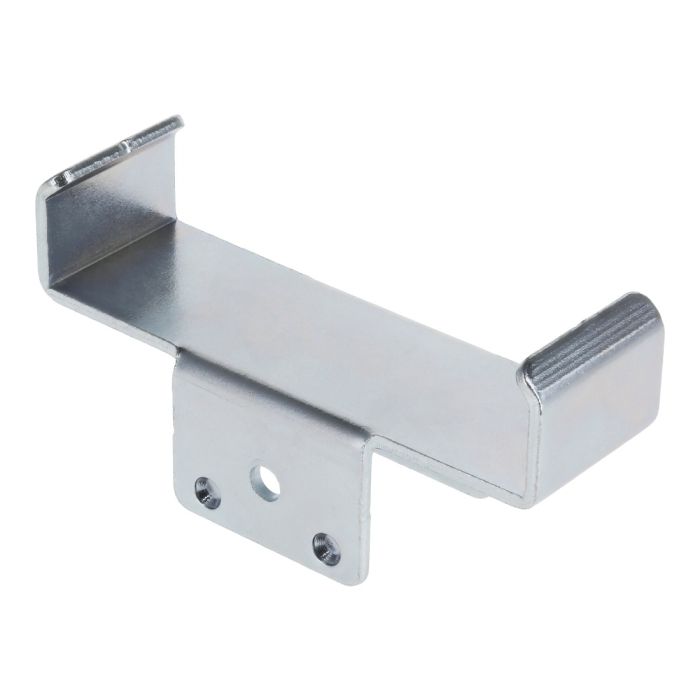

R85-CS
Track Mount Stabilizer Wide
Track Mount Stabilizer Wide
The R85-CS is an electrostatic discharge (ESD) compliant steel stabilizer bracket designed to connect and extend R85 roller tracks up to 16 feet in length. Ideal for modular conveyor builds, it helps maintain flow stability while supporting lean material handling layouts.
- ESD-safe steel connector for conveyor extensions
- Extends conveyor rails up to 16 ft
- Compatible with 10 Series, 25 Series T-Slot extrusions and 1 1/16 in (28 mm) pipe systems
- Ideal for modular conveyor setups
- Works with all R85 parts and accessories
A Flexpipe product
The R85-CS is an electrostatic discharge (ESD) compliant steel stabilizer bracket designed to connect and extend R85 roller tracks up to 16 feet in length. Ideal for modular conveyor builds, it helps maintain flow stability while supporting lean material handling layouts.
- ESD-safe steel connector for conveyor extensions
- Extends conveyor rails up to 16 ft
- Compatible with 10 Series, 25 Series T-Slot extrusions and 1 1/16 in (28 mm) pipe systems
- Ideal for modular conveyor setups
- Works with all R85 parts and accessories
A Flexpipe product
| ESD Safe | Yes |
| Weight | 0.550000 |
| Series | 10 Series, 25 Series, Pipe |
| Material | Steel |
| Color | Bright Zinc |
| A | 1.978" (50.25mm) |
| B | 1.250" (31.75mm) |
| C | 5.667" (90.60mm) |
| D | 1.062" (27.00mm) |
| E | 0.125" (3.18mm) |
The R85-CS is an electrostatic discharge (ESD) compliant steel stabilizer bracket designed to connect and extend R85 roller tracks up to 16 feet in length. Ideal for modular conveyor builds, it helps maintain flow stability while supporting lean material handling layouts.
- ESD-safe steel connector for conveyor extensions
- Extends conveyor rails up to 16 ft
- Compatible with 10 Series, 25 Series T-Slot extrusions and 1 1/16 in (28 mm) pipe systems
- Ideal for modular conveyor setups
- Works with all R85 parts and accessories
A Flexpipe product
Mount to T-Slot or Pipe
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3042 | 2 | 10-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3205 | 2 | 10 Series 10-32 Standard Slide-in T-Nut |
| 3055 | 2 | .221" ID Washer |
 | 11-5310 | 2 | M5 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 3871 | 2 | 10 Series M5 Standard Slide-in T-Nut |
| 11-6040 | 2 | 5.30mm ID Washer |
 | F-A858 | 2 | #8-5/8" Self Drilling Screw with Square Bit Head |
Product Specs
- Product Details
-
ESD Safe Yes Weight 0.550000 Series 10 Series, 25 Series, Pipe Material Steel Color Bright Zinc A 1.978" (50.25mm) B 1.250" (31.75mm) C 5.667" (90.60mm) D 1.062" (27.00mm) E 0.125" (3.18mm)
-
- Description
The R85-CS is an electrostatic discharge (ESD) compliant steel stabilizer bracket designed to connect and extend R85 roller tracks up to 16 feet in length. Ideal for modular conveyor builds, it helps maintain flow stability while supporting lean material handling layouts.
- ESD-safe steel connector for conveyor extensions
- Extends conveyor rails up to 16 ft
- Compatible with 10 Series, 25 Series T-Slot extrusions and 1 1/16 in (28 mm) pipe systems
- Ideal for modular conveyor setups
- Works with all R85 parts and accessories
A Flexpipe product
-
Sugg. Hardware
Mount to T-Slot or Pipe
Series Part Number Qty Description 3042 2 10-32 x .375" Button Head Socket Cap Screw (BHSCS)
3205 2 10 Series 10-32 Standard Slide-in T-Nut
3055 2 .221" ID Washer
11-5310 2 M5 x 10.00mm Button Head Socket Cap Screw (BHSCS)
3871 2 10 Series M5 Standard Slide-in T-Nut
11-6040 2 5.30mm ID Washer
F-A858 2 #8-5/8" Self Drilling Screw with Square Bit Head
-
