2745-Black

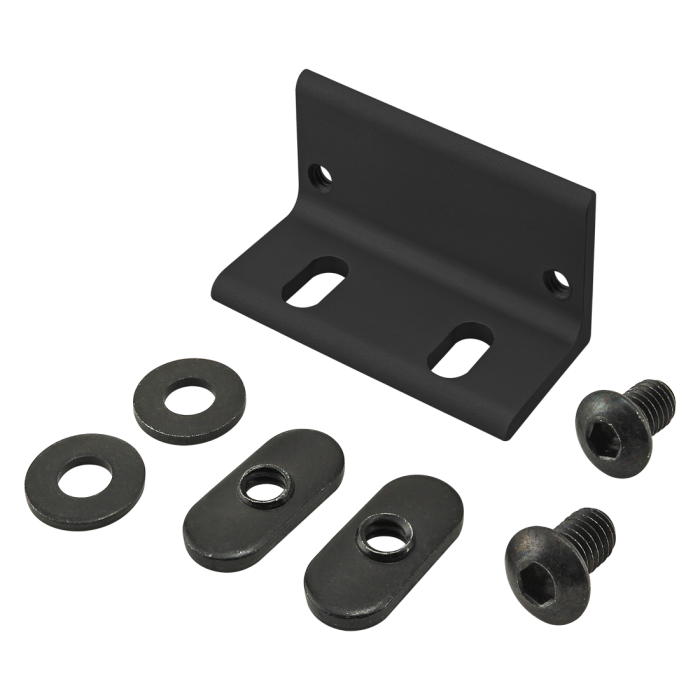

10 & 15 Series Magnetic Door Catch Bracket
10 & 15 Series Magnetic Door Catch Bracket
The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
....................................................................................................................................................................................................................................................
Price Per Inch
$6.71
....................................................................................................................................................................................................................................................
Total Price
$6.71| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 1.000" |
| B | .250" |
| C | 1.000" |
| D | .250" |
| E | 1.000" |
| F | .375" |
| G | .170" |
| H | 1.660" |
| J | 8-32 |
| Weight | 0.0870 |
The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
  | 3061 | 2 | 1/4-20 x .500" Button Head Socket Cap Screw (BHSCS) | |
| 3382 | 2 | 1/4-20 Slide-in Economy T-Nut - Centered Thread | |
| 3258 | 2 | .286" ID Washer |
