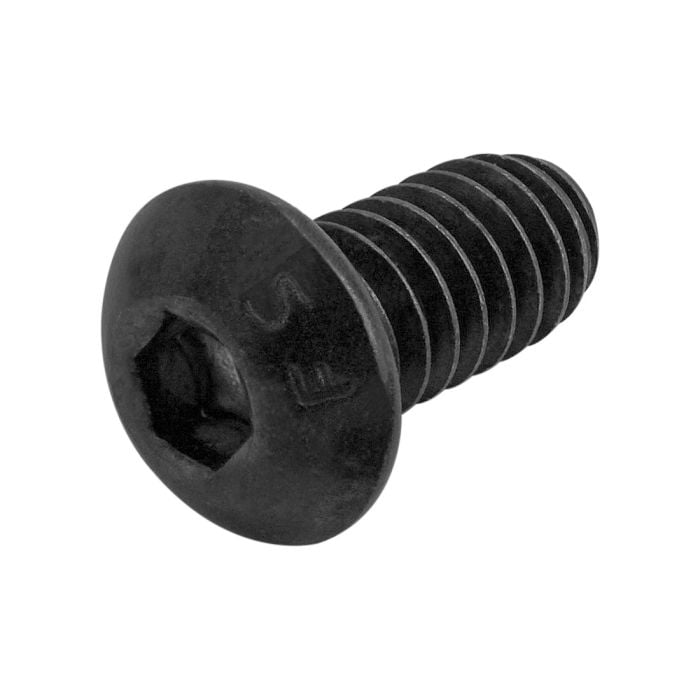

1/4-20 x .500" Button Head Socket Cap Screw (BHSCS)
| Series | Fractional |
| Material | Steel |
| Finish | Zinc |
| Color | Black |
| A | .428” |
| B | 5/32 |
| C | .127” |
| D (Length) | .500” |
| E (Thread) | 1/4-20 |
| Thread Length | Full Thread |
| Weight | 0.008000 |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
| Series | Fractional |
| Material | Steel |
| Finish | Zinc |
| Color | Black |
| A | .428” |
| B | 5/32 |
| C | .127” |
| D (Length) | .500” |
| E (Thread) | 1/4-20 |
| Thread Length | Full Thread |
| Weight | 0.008000 |
