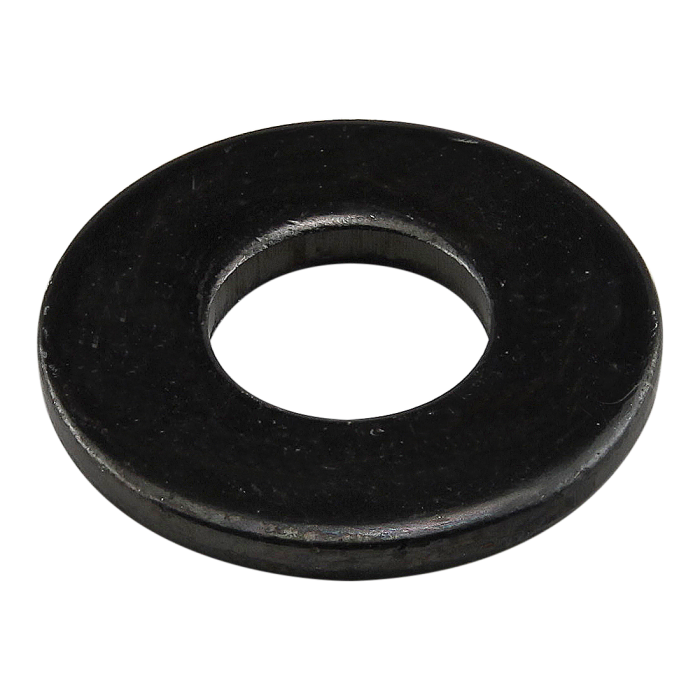

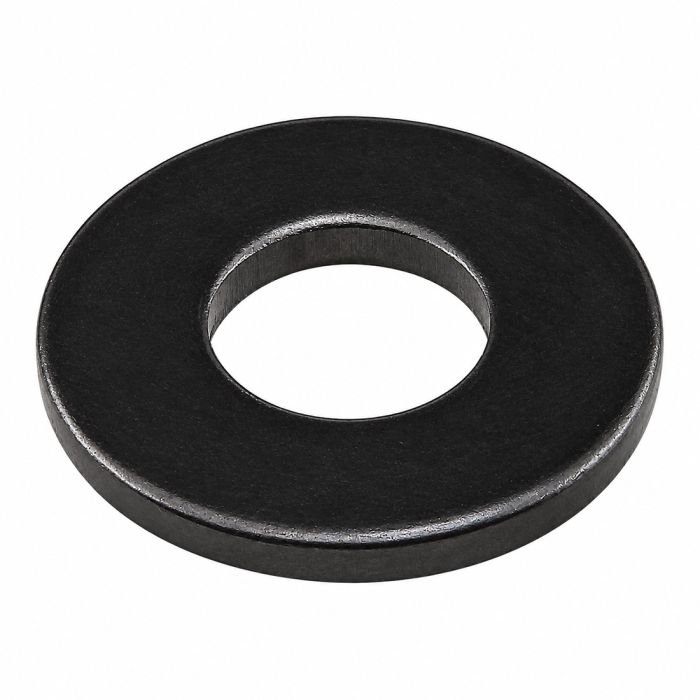

3258

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    Type	SAE Flat
    Mfg Standard	ANSI B18.22.1

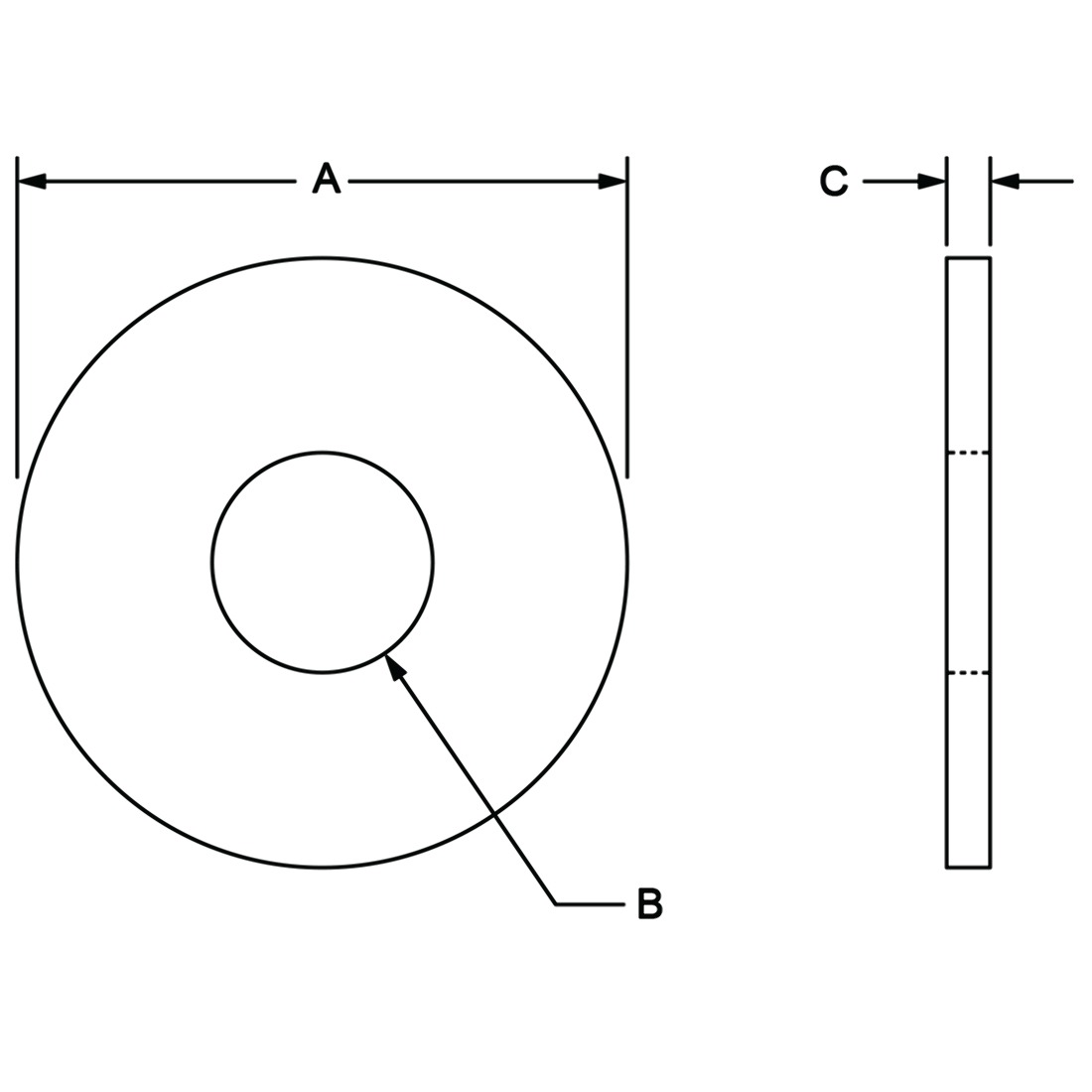

    A	.625"
    B	.286"
    C	.066"
    Weight	0.004000
