10 & 15 Series Magnetic Door Catch Bracket
10 & 15 Series Magnetic Door Catch Bracket

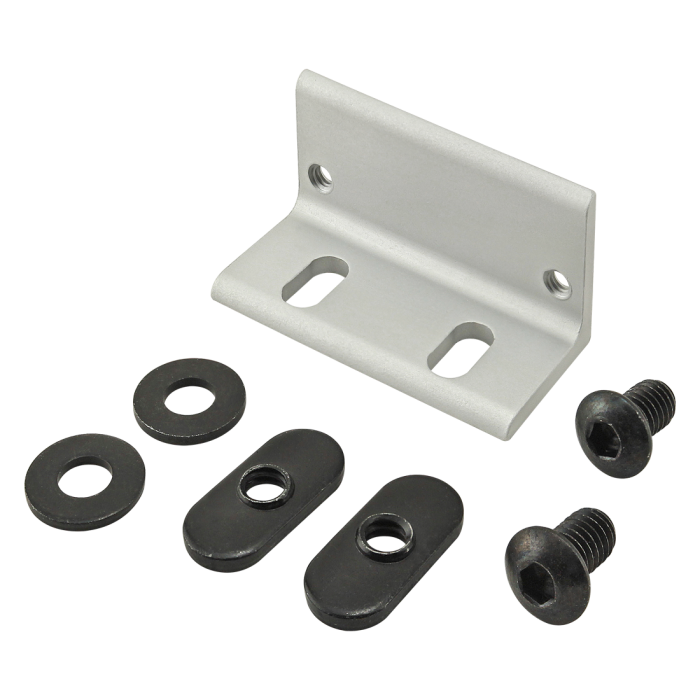

The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
| ESD Safe | No |
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 1.000" |
| B | .250" |
| C | 1.000" |
| D | .250" |
| E | 1.000" |
| F | .375" |
| G | .170" |
| H | 1.660" |
| J | 8-32 |
| Weight | 0.087000 |
The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 3061 | 2 | 1/4-20 x .500" Button Head Socket Cap Screw (BHSCS) |
| 3382 | 2 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
| 3258 | 2 | .286" ID Washer |
Product Specs
- Product Details
-
ESD Safe No Series 10 Series, 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A 1.000" B .250" C 1.000" D .250" E 1.000" F .375" G .170" H 1.660" J 8-32 Weight 0.087000
-
- Description
- The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
- Incl. Hardware
-
