10 & 15 Series Magnetic Door Catch

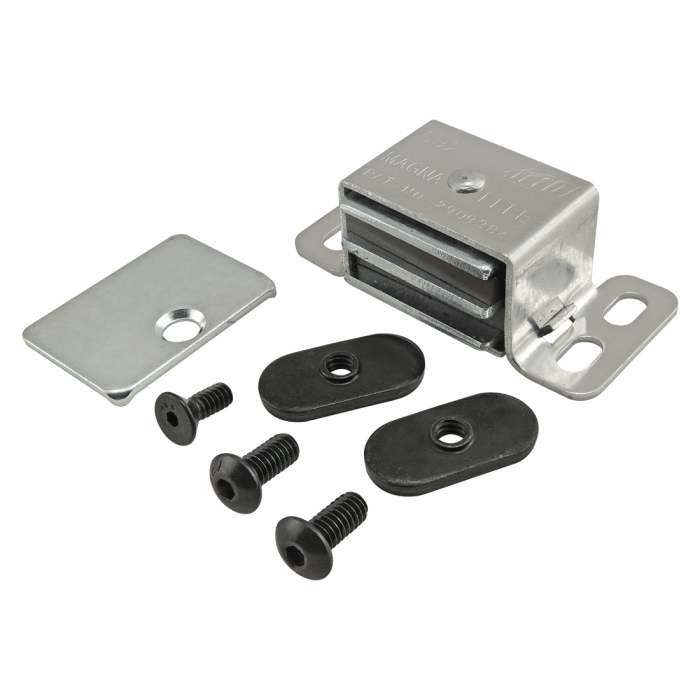

The magnetic door catch is lightweight and ideal for latching plastic panels in place. It has an estimated pull force of 12 pounds (5.443 kilograms). All of the mounting hardware is included. The magnetic door catch requires a panel tap service to mount the striker plate to the plastic panel.
Total Price
................................................................................................................................| Series | 10 Series, 15 Series |
| Material | Steel |
| Process | Formed |
| Finish | Zinc |
| Color | Bright |
| A | .710" |
| B | 1.172" |
| C | .880" |
| D | 1.130" |
| E | .275" |
| F | .090" |
| G | .163" |
| H | .166" |
| J | 2.060" |
| Weight | 0.141000 |
The magnetic door catch is lightweight and ideal for latching plastic panels in place. It has an estimated pull force of 12 pounds (5.443 kilograms). All of the mounting hardware is included. The magnetic door catch requires a panel tap service to mount the striker plate to the plastic panel.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 3005 | 2 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3275 | 2 | 8-32 Slide-in Economy T-Nut - Centered Thread |
Mount Striker Plate to Panel
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 11-4710 | 1 | M4 x 10.00mm Flat Head Socket Cap Screw (FHSCS) |
| 14164 | 1 | 10 & 25 Series M4 Standard Drop-in T-Nut |
| 13113 | 1 | 30 Series M4 Standard Drop-in T-Nut |
Product Specs
- Product Details
-
Series 10 Series, 15 Series Material Steel Process Formed Finish Zinc Color Bright A .710" B 1.172" C .880" D 1.130" E .275" F .090" G .163" H .166" J 2.060" Weight 0.141000
-
- Description
- The magnetic door catch is lightweight and ideal for latching plastic panels in place. It has an estimated pull force of 12 pounds (5.443 kilograms). All of the mounting hardware is included. The magnetic door catch requires a panel tap service to mount the striker plate to the plastic panel.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3005 2 8-32 x .375" Button Head Socket Cap Screw (BHSCS)
3275 2 8-32 Slide-in Economy T-Nut - Centered Thread
-
Sugg. Hardware
Mount Striker Plate to Panel
Series Part Number Qty Description 11-4710 1 M4 x 10.00mm Flat Head Socket Cap Screw (FHSCS)
14164 1 10 & 25 Series M4 Standard Drop-in T-Nut
13113 1 30 Series M4 Standard Drop-in T-Nut
