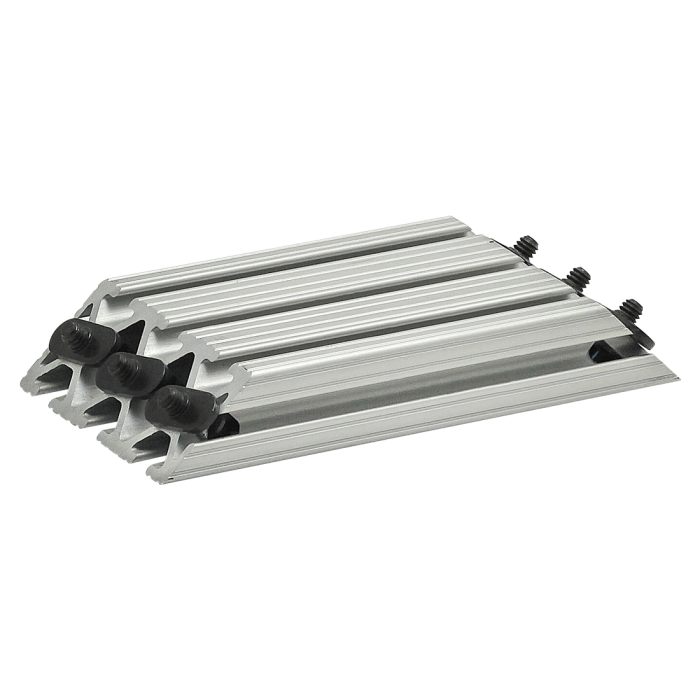

1030 45 Degree Support, 6" Long
1030 45 Degree Support, 6" Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Total Price
................................................................................................................................| Series | 10 Series |
| Profile | 1030 |
| A | 1.000" |
| B | 3.000" |
| C | 6.000" |
| Weight | 0.660000 |
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3067 | 6 | 1/4-20 x .625" Socket Head Cap Screw (SHCS) |
 | 3382 | 6 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
| 3258 | 6 | .286" ID Washer |
Product Specs
- Product Details
-
Series 10 Series Profile 1030 A 1.000" B 3.000" C 6.000" Weight 0.660000
-
- Description
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3067 6 1/4-20 x .625" Socket Head Cap Screw (SHCS)
3382 6 1/4-20 Slide-in Economy T-Nut - Centered Thread
3258 6 .286" ID Washer
