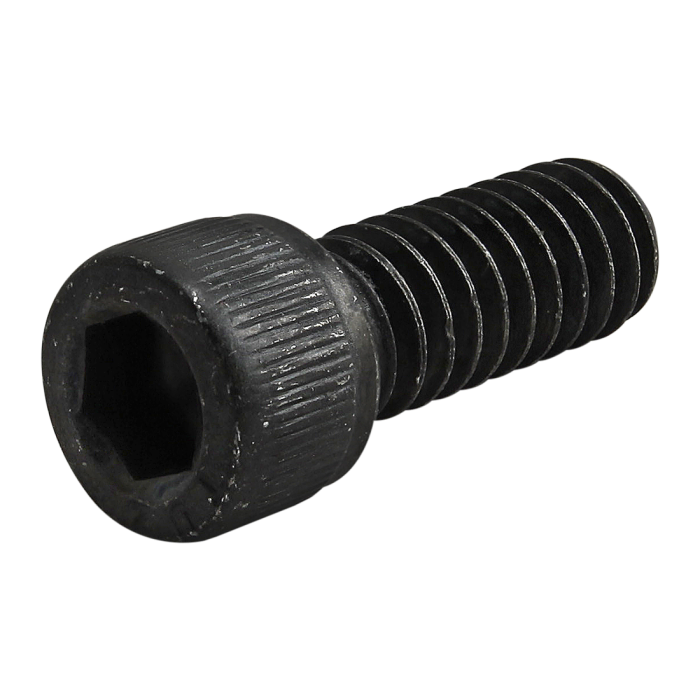

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    A	.370"
    B	3/16
    C	.247"
    D (Length)	.625"
    E (Thread)	1/4-20
    Thread Length	Full Thread
    Weight	0.012000
