HJ-9NP

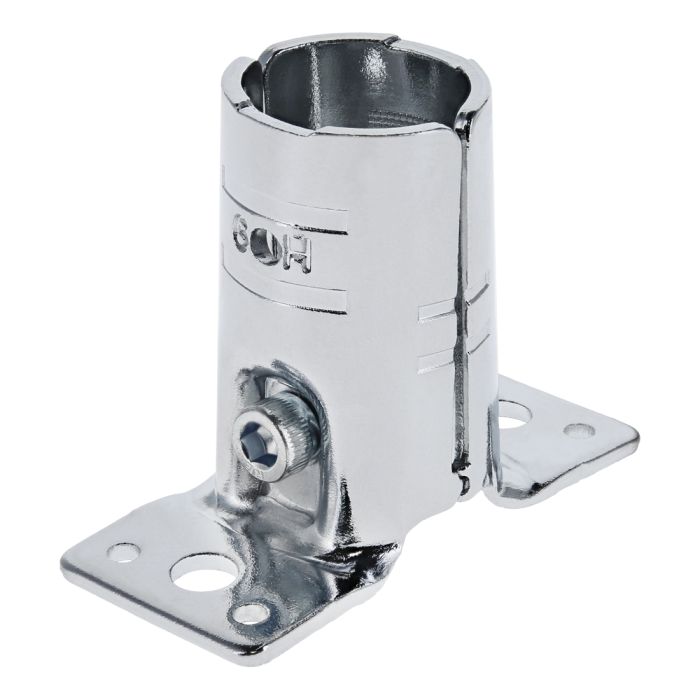

Flat Anchor Joint Set - A Flexpipe product.
Flat Anchor Joint Set - A Flexpipe product.
- Used with 28mm pipe to connect to T-Slot or other flat surfaces
- Hardware is included
Total Price
................................................................................................................................| Weight | 0.293000 |
| Color | N/A |
| Series | Fractional, Metric |
| Material | Steel |
| Finish | Chrome |
| ESD | Yes |
| A | 1.299" (33.00mm) |
| B | 2.810" (71.00mm) |
| C | 1.102" (28.00mm) |
| D | 0.315" (8.00mm) |
| E | 0.118" (3.00mm) |
| F | 0.393" (10.00mm) |
| G | 2.205" (56.00mm) |
| H | 0.165" (4.20mm) |
| J | 1.161" (30.00mm) |
| K | 0.098" (2.50mm) |
- Used with 28mm pipe to connect to T-Slot or other flat surfaces
- Hardware is included
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 11-6314 | 2 | M6 x 14.00mm Button Head Socket Cap Screw (BHSCS) |
| 3836 | 2 | M6 Slide-in Economy T-Nut - Centered Thread |
| 11-6042 | 2 | 8.51mm ID Washer |
 | 11-6310 | 2 | M6 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 30-1961 | 2 | M6 Slide-in Economy T-Nut - Offset Thread |
| 11-6041 | 2 | 6.51mm ID Washer |
 | 11-6314 | 2 | M6 x 14.00mm Button Head Socket Cap Screw (BHSCS) |
| 13048 | 2 | M6 Self-Aligning Slide-in T-Nut |
| 11-6041 | 2 | 6.51mm ID Washer |
Added Security Anchor & Pipe
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | F-A85-8 | 1 | #8-5/8" Self Drilling Screw with Square Bit Head |
