()HJ-9

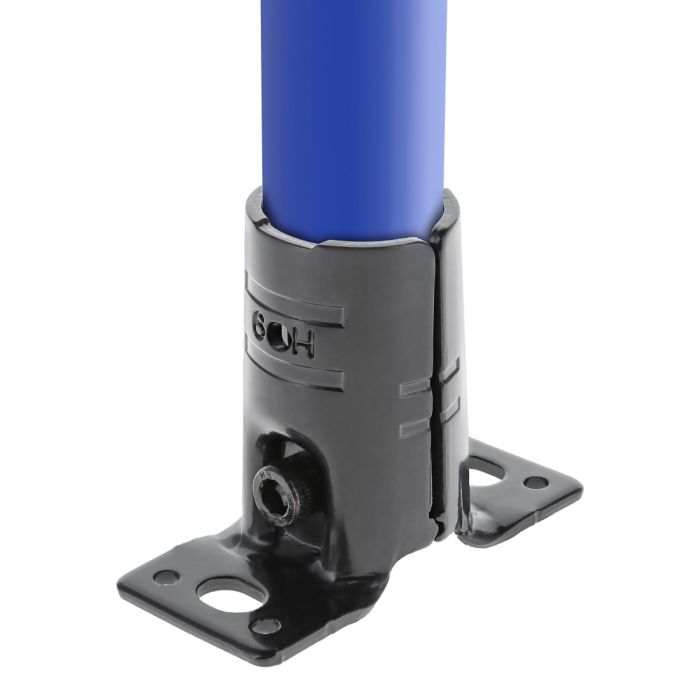

Flat Anchor Joint SetÂ
Flat Anchor Joint SetÂ
- Used with 28mm pipe to connect to T-slot or other flat surfaces
- Hardware is included
- A Flexpipe product
Total Price
................................................................................................................................Weight | 0.293000 |
Color | N/A |
Series | Fractional, Metric |
Material | Steel |
Finish | Black |
ESD | No |
A | 1.299" (33.00mm) |
B | 2.810" (71.00mm) |
C | 1.102" (28.00mm) |
D | 0.315" (8.00mm) |
E | 0.118" (3.00mm) |
F | 0.393" (10.00mm) |
G | 2.205" (56.00mm) |
H | 0.165" (4.20mm) |
J | 1.181" (30.00mm) |
K | 0.098" (2.50mm) |
- Used with 28mm pipe to connect to T-slot or other flat surfaces
- Hardware is included
- A Flexpipe product
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
11-6314 | 2 | M6 x 14.00mm Button Head Socket Cap Screw (BHSCS) | |
3836 | 2 | M6 Slide-in Economy T-Nut - Centered Thread | |
11-6041 | 2 | 6.51mm ID Washer | |
11-6310 | 2 | M6 x 10.00mm Button Head Socket Cap Screw (BHSCS) | |
30-1961 | 2 | M6 Slide-in Economy T-Nut - Offset Thread | |
11-6041 | 2 | 6.51mm ID Washer | |
11-6314 | 2 | M6 x 14.00mm Button Head Socket Cap Screw (BHSCS) | |
13048 | 2 | M6 Self-Aligning Slide-in T-Nut | |
11-6041 | 2 | 6.51mm ID Washer |
Added Security Anchor & Pipe
Series | Part Number | Qty | Description |
---|---|---|---|
F-A85-8 | 1 | #8-5/8" Self Drilling Screw with Square Bit Head |
