Product Specs

• Product Details
  •

    ESD Safe	Yes
    Weight	12.020000
    Series	10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series
    Material	Zinc Plated Steel
    Load Capacity	600 lbs per pair (272.15 kg)

• Description

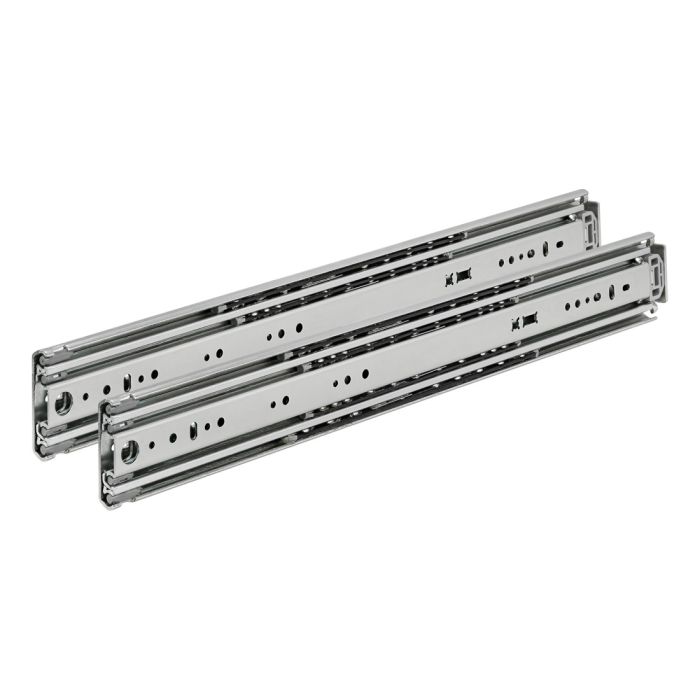

  • • Fully extendable length, travel 16.000”, 24.000”, 32.000”
    • Full access extension built for industrial applications requiring extended
      reach and high load capacity
    • Robust structure ideal for modular workstations, carts and cabinets in an
      industrial setting
    • Side Mount: Load capacity of 600 lbs per pair for drawers up to 24” wide.
      Max drawer width of 42” has a 480 lb capacity. (sold in pairs)
    • Flat mount: Load capacity of 180 lbs per pair at max width of 32”
    • Mobile applications: 360 lbs / pair, drawers up to 32” wide
    • Mounts to 80/20 T-slot profiles or pipes
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3059	28	1/4-20 x .375" Button Head Socket Cap Screw (BHSCS)
    			And
    	3204	28	10 Series 1/4-20 Standard Slide-in T-Nut
    	3061	28	1/4-20 x .500" Button Head Socket Cap Screw (BHSCS)
    			And
    	3202	28	15 Series 1/4-20 Standard Slide-in T-Nut
    	11-6310	28	M6 x 10.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3873	28	10 Series M6 Standard Slide-in T-Nut
    	11-6310	28	M6 x 10.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13024	28	M6 Self-Aligning Slide-in T-Nut
    	11-6312	28	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3866	28	15 Series M6 Standard Slide-in T-Nut
    	11-6314	28	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13048	28	M6 Self-Aligning Slide-in T-Nut
