H-9

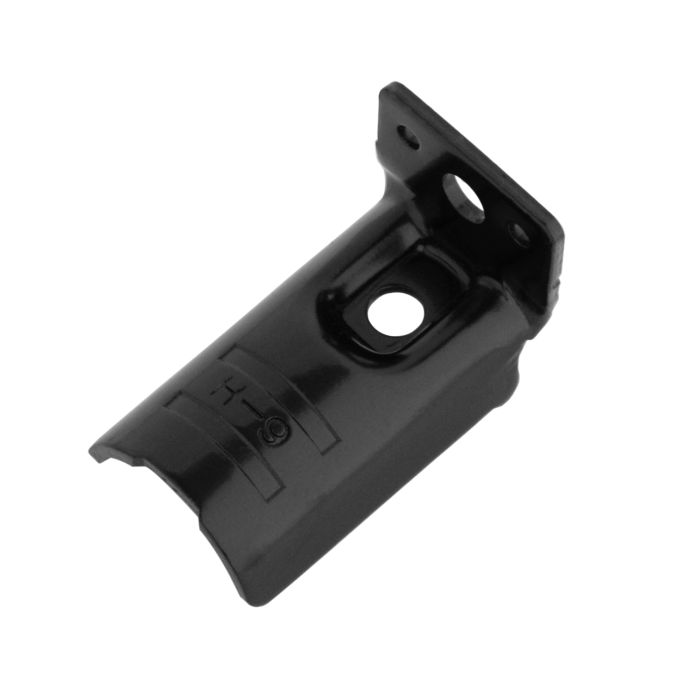

Flat Anchor Joint Steel
The H-9 is a black metal single joint used to assemble the HJ-8 / HJ-9 joint sets.
- This part creates an anchor point on Flexpipe structures or other equipment
- Includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure.
- Used with 28mm pipe to connect to T-slot or other flat surfaces
- Add an F-A858, self-drilling screw, to reinforce connector joints located at corners where the risk of impact is higher.
A Flexpipe Product
The H-9 is a black metal single joint used to assemble the HJ-8 / HJ-9 joint sets.
- This part creates an anchor point on Flexpipe structures or other equipment
- Includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure.
- Used with 28mm pipe to connect to T-slot or other flat surfaces
- Add an F-A858, self-drilling screw, to reinforce connector joints located at corners where the risk of impact is higher.
A Flexpipe Product
| ESD Safe | No |
| Weight | 0.136000 |
| Color | Black |
| Series | Fractional, Metric, Pipe |
| Material | Steel |
| Finish | Cathodic Electrodeposition (Ecoating) |
| A | 1.299" (33.00mm) |
| B | 1.405" (35.687mm) |
| C | N/A |
| D | 0.315" (8.00mm) |
| E | 0.118" (3.00mm) |
| F | 0.393" (10.00mm) |
| G | 2.205" (56.00mm) |
| H | 0.165" (4.20mm) |
| J | 1.181" (30.00mm) |
| K | 0.098" (2.50mm) |
The H-9 is a black metal single joint used to assemble the HJ-8 / HJ-9 joint sets.
- This part creates an anchor point on Flexpipe structures or other equipment
- Includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure.
- Used with 28mm pipe to connect to T-slot or other flat surfaces
- Add an F-A858, self-drilling screw, to reinforce connector joints located at corners where the risk of impact is higher.
A Flexpipe Product
