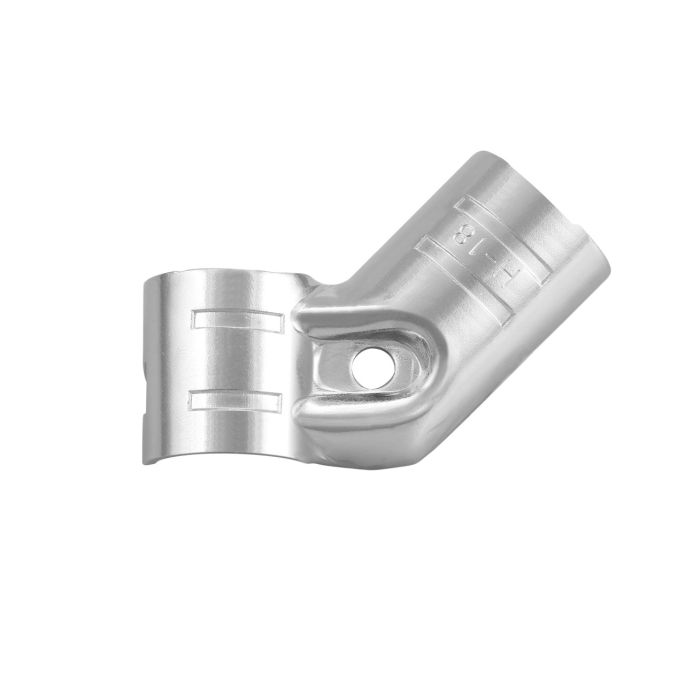

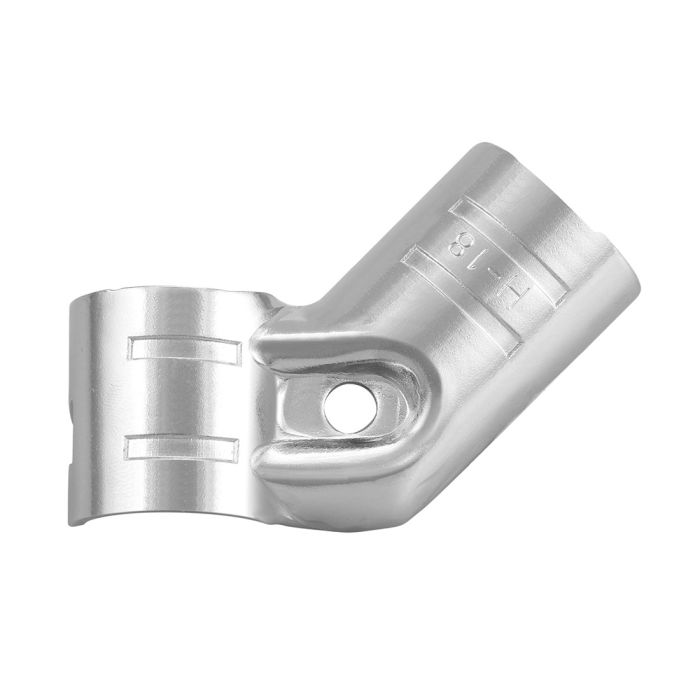

H-18NP
45° Angle B Joint Steel - ESD
The H-18NP is a anti-static metal single joint and the second half of a joint set named HJ-17NP. When connected with an H-17NP, this connector becomes a 45° angle joint set. This part's only purpose is to connect with its counterpart, and the same applies to the H-17NP. Together, these single joints enable Flexpipe builders to assemble and improve pipe structures.
This joint doesn't come with adjustable features, so if you are looking for a more flexible solution you should take a look at the HJ-6NP joint set product page. However, the fewer parts making up a set, the stronger it is.
A Flexpipe Product
The H-18NP is a anti-static metal single joint and the second half of a joint set named HJ-17NP. When connected with an H-17NP, this connector becomes a 45° angle joint set. This part's only purpose is to connect with its counterpart, and the same applies to the H-17NP. Together, these single joints enable Flexpipe builders to assemble and improve pipe structures.
This joint doesn't come with adjustable features, so if you are looking for a more flexible solution you should take a look at the HJ-6NP joint set product page. However, the fewer parts making up a set, the stronger it is.
A Flexpipe Product
| ESD Safe | Yes |
| Weight | 0.152000 |
| Color | Chrome |
| Series | Pipe |
| Material | Steel |
| Finish | Chrome Plating |
| Overall Length | 3.1875” (81.00mm) |
| Overall Width | 1.3125” (33.00mm) |
| Overall Height | 0.75" (19mm) |
| Thickness | .125” (2.50mm) |
The H-18NP is a anti-static metal single joint and the second half of a joint set named HJ-17NP. When connected with an H-17NP, this connector becomes a 45° angle joint set. This part's only purpose is to connect with its counterpart, and the same applies to the H-17NP. Together, these single joints enable Flexpipe builders to assemble and improve pipe structures.
This joint doesn't come with adjustable features, so if you are looking for a more flexible solution you should take a look at the HJ-6NP joint set product page. However, the fewer parts making up a set, the stronger it is.
A Flexpipe Product
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
