FL-COU20-100lbs

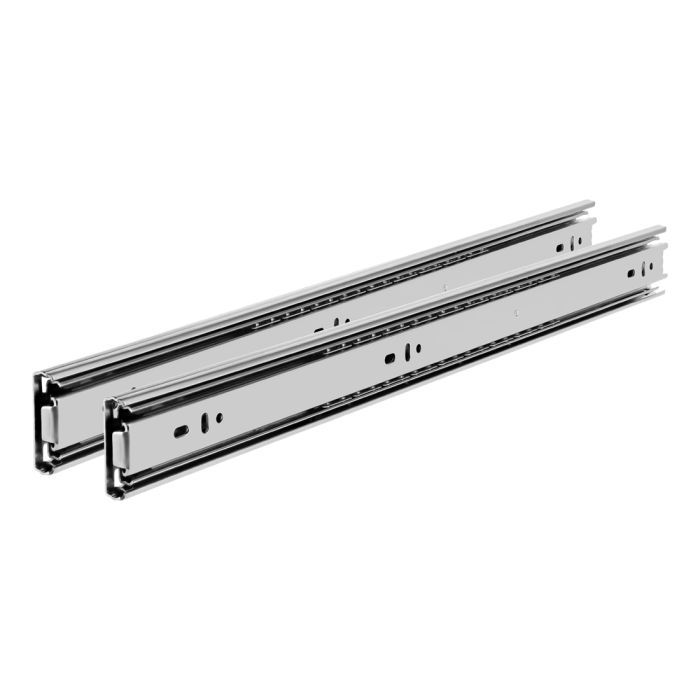

20" Drawer Slide
20" Drawer Slide
- Fully extendable length, travel 20.275" (515mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
Total Price
................................................................................................................................| Weight | 3.302000 |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material | Galvanized Steel |
| Load Capacity | 100 lbs per pair |
| A | 39.690" (1008.13mm) |
| B | 19.690" (500.13mm) |
| C | 1.642" (41.73mm) |
| D | 6.300" (160.02mm) |
| E | 9.862" (250.50mm) |
| F | 0.939" (10.00m) |
| G | 0.625" (15.88mm) |
| H | 0.088" (2.24mm) |
| J | 0.179" (4.56mm) |
| K | 0.500" (12.70mm) |
| L | 1.796" (45.64mm) |
| M | 19.690" (500.13mm) |
| N | 1.712" (45.50mm) |
| P | 0.807" (20.50mm) |
| Q | 2.431" (61.75mm) |
| R | 1.354" (34.40mm) |
| S | 1.637" (41.60mm) |
| T | 2.047" (52.00mm) |
| U | 1.348" (34.25mm) |
| V | 1.643" (41.75mm) |
| W | 0.790" (20.07mm) |
| X | 1.700" (43.19mm) |
| Y | 1.332" (33.85mm) |
| Z | 0.087" (2.23mm) |
| AA | 0.183" (4.67mm) |
- Fully extendable length, travel 20.275" (515mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3005 | 14 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3275 | 14 | 8-32 Slide-in Economy T-Nut - Centered Thread |
| 3006 | 14 | .188" ID Washer |
 | 3005 | 14 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3275 | 14 | 8-32 Slide-in Economy T-Nut - Centered Thread |
 | 3005 | 14 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3275 | 14 | 8-32 Slide-in Economy T-Nut - Centered Thread |
| 3006 | 14 | .188" ID Washer |
 | 11-4310 | 14 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13022 | 14 | M4 Self-Aligning Slide-in T-Nut |
| 11-6039 | 14 | 4.39mm ID Washer |
 | 11-4310 | 14 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13022 | 14 | M4 Self-Aligning Slide-in T-Nut |
 | 11-4310 | 14 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13046 | 14 | M4 Self-Aligning Slide-in T-Nut |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Weight 3.302000 Series 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series Material Galvanized Steel Load Capacity 100 lbs per pair A 39.690" (1008.13mm) B 19.690" (500.13mm) C 1.642" (41.73mm) D 6.300" (160.02mm) E 9.862" (250.50mm) F 0.939" (10.00m) G 0.625" (15.88mm) H 0.088" (2.24mm) J 0.179" (4.56mm) K 0.500" (12.70mm) L 1.796" (45.64mm) M 19.690" (500.13mm) N 1.712" (45.50mm) P 0.807" (20.50mm) Q 2.431" (61.75mm) R 1.354" (34.40mm) S 1.637" (41.60mm) T 2.047" (52.00mm) U 1.348" (34.25mm) V 1.643" (41.75mm) W 0.790" (20.07mm) X 1.700" (43.19mm) Y 1.332" (33.85mm) Z 0.087" (2.23mm) AA 0.183" (4.67mm)
-
- Description
- Fully extendable length, travel 20.275" (515mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3005 14 8-32 x .375" Button Head Socket Cap Screw (BHSCS)
3275 14 8-32 Slide-in Economy T-Nut - Centered Thread
3006 14 .188" ID Washer
3005 14 8-32 x .375" Button Head Socket Cap Screw (BHSCS)
3275 14 8-32 Slide-in Economy T-Nut - Centered Thread
3005 14 8-32 x .375" Button Head Socket Cap Screw (BHSCS)
3275 14 8-32 Slide-in Economy T-Nut - Centered Thread
3006 14 .188" ID Washer
11-4310 14 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13022 14 M4 Self-Aligning Slide-in T-Nut
11-6039 14 4.39mm ID Washer
11-4310 14 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13022 14 M4 Self-Aligning Slide-in T-Nut
11-4310 14 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13046 14 M4 Self-Aligning Slide-in T-Nut
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
