FL-COU14-100lbs

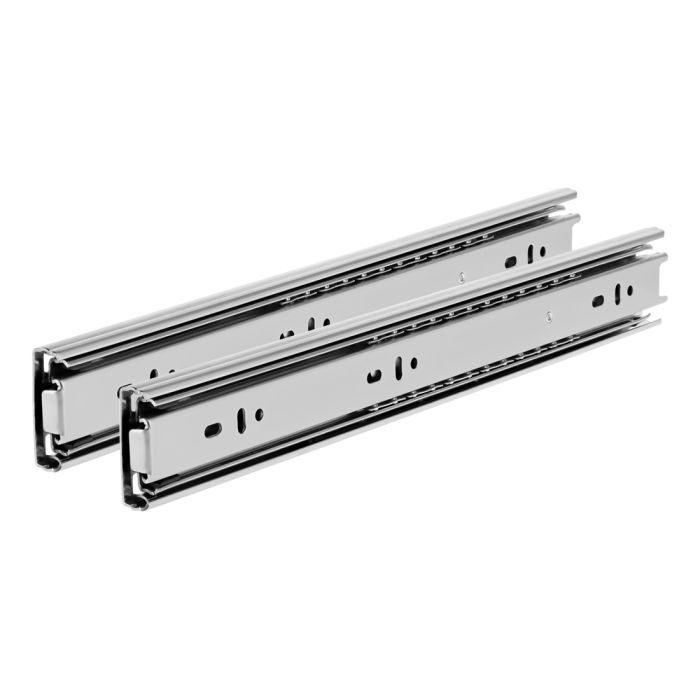

14" Drawer Slide
14" Drawer Slide
- Fully extendable length, travel 14.763" (375mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
Total Price
................................................................................................................................| Weight | 2.304000 |
| Series | 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series |
| Material | Galvanized Steel |
| Load Capacity | 100 lbs per pair |

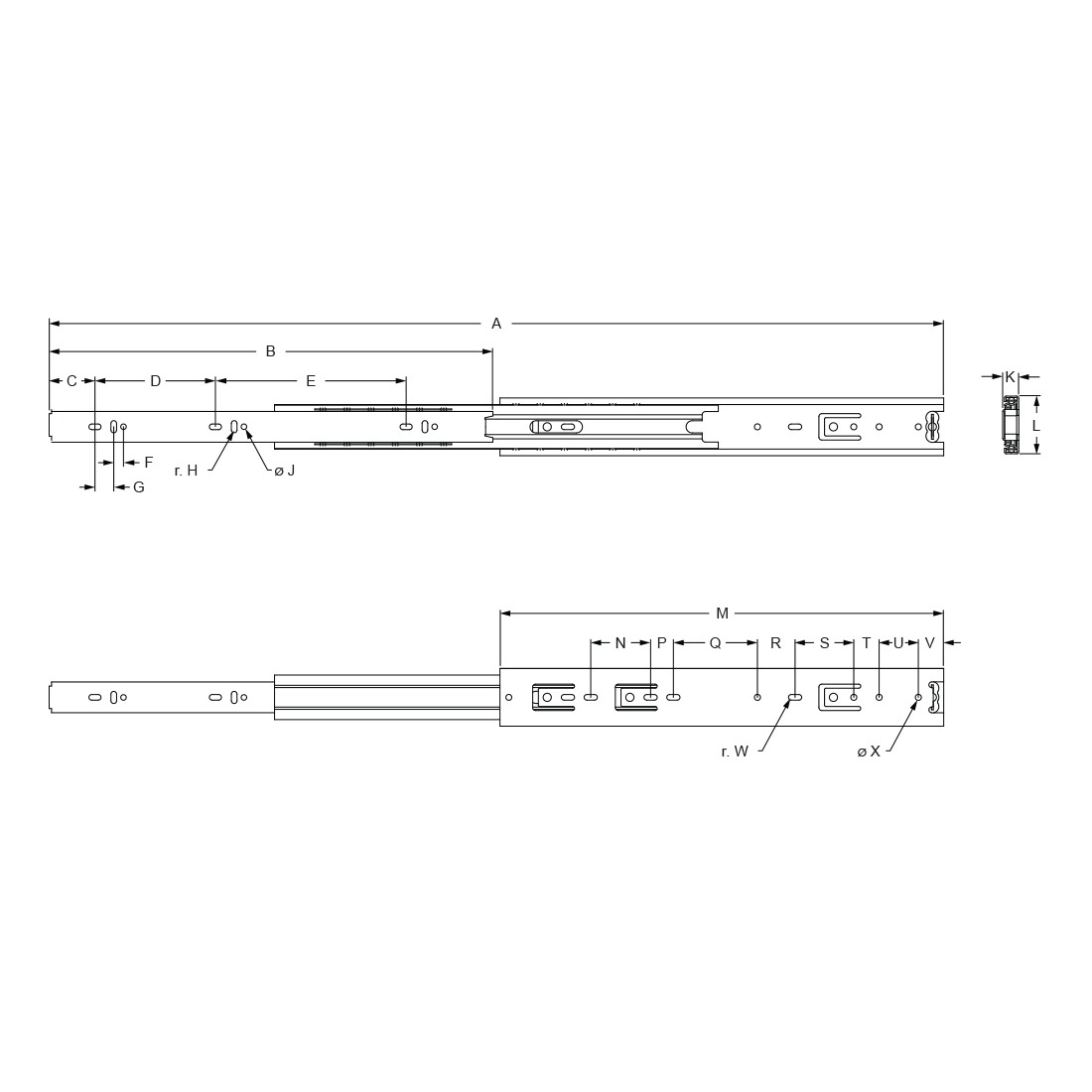

| A | 27.779" (705.61mm) |
| B | 13.779" (350.01mm) |
| C | 1.423" (36.16mm) |
| D | 3.740" (95.00mm) |
| E | 5.922" (150.44mm) |
| F | 0.302" (7.68mm) |
| G | 0.583" (14.82mm) |
| H | 0.067" (2.23mm) |
| J | 0.172" (4.37mm) |
| K | 0.500" (12.70mm) |
| L | 1.798" (45.64mm) |
| M | 13.779" (350.01mm) |
| N | 1.659" (47.23mm) |
| P | 0.707" (17.97mm) |
| Q | 2.609" (66.29mm) |
| R | 1.169" (29.71mm) |
| S | 1.822" (46.29mm) |
| T | 0.787" (20.00mm) |
| U | 1.217" (30.93mm) |
| V | 0.787" (20.00mm) |
| W | 0.087" (2.21mm) |
| X | 0.187" (4.75mm) |
- Fully extendable length, travel 14.763" (375mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
   | 3005 | 12 | 8-32 x .375" Button Head Socket Cap Screw (BHSCS) |
| 3275 | 12 | 8-32 Slide-in Economy T-Nut - Centered Thread |
| 3006 | 12 | .188" ID Washer |
 | 11-4310 | 12 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13022 | 12 | M4 Self-Aligning Slide-in T-Nut |
| 11-6039 | 12 | 4.39mm ID Washer |
 | 11-4310 | 12 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13022 | 12 | M4 Self-Aligning Slide-in T-Nut |
 | 11-4310 | 12 | M4 x 10.00mm Button Head Socket Cap Screw (BHSCS) |
| 13046 | 12 | M4 Self-Aligning Slide-in T-Nut |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Weight 2.304000 Series 10 Series, 15 Series, 25 Series, 30 Series, 40 Series, 45 Series Material Galvanized Steel Load Capacity 100 lbs per pair A 27.779" (705.61mm) B 13.779" (350.01mm) C 1.423" (36.16mm) D 3.740" (95.00mm) E 5.922" (150.44mm) F 0.302" (7.68mm) G 0.583" (14.82mm) H 0.067" (2.23mm) J 0.172" (4.37mm) K 0.500" (12.70mm) L 1.798" (45.64mm) M 13.779" (350.01mm) N 1.659" (47.23mm) P 0.707" (17.97mm) Q 2.609" (66.29mm) R 1.169" (29.71mm) S 1.822" (46.29mm) T 0.787" (20.00mm) U 1.217" (30.93mm) V 0.787" (20.00mm) W 0.087" (2.21mm) X 0.187" (4.75mm)
-
- Description
- Fully extendable length, travel 14.763" (375mm)
- Lever disconnect for easy installation or removal of drawer
- Smooth ball bearings for quiet operation
- Low profile design for space savings
- Side-mounts to 80/20 T-Slot profiles
- ESD / Galvanized Steel
- Supports up to 100 pounds per pair
- Sold in pairs
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3005 12 8-32 x .375" Button Head Socket Cap Screw (BHSCS)
3275 12 8-32 Slide-in Economy T-Nut - Centered Thread
3006 12 .188" ID Washer
11-4310 12 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13022 12 M4 Self-Aligning Slide-in T-Nut
11-6039 12 4.39mm ID Washer
11-4310 12 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13022 12 M4 Self-Aligning Slide-in T-Nut
11-4310 12 M4 x 10.00mm Button Head Socket Cap Screw (BHSCS)
13046 12 M4 Self-Aligning Slide-in T-Nut
- CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
