6945-SR

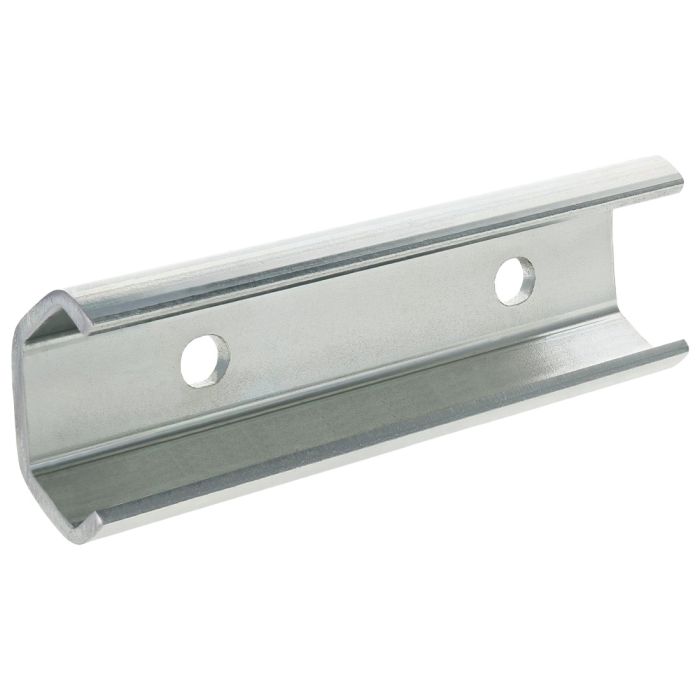

Standard Rail - 45mm
Standard Rail - 45mm
- Directly mount to T-Slot with mounting holes
- Compatible with 80/20 T-Slot profile series 10, 15, 25, 30, 40, 45
- Temperature Rating: 212° F
- Zinc plated carbon steel
- Comes with pre-drilled offset holes to mount to the T-Slot
$0.0850
*cut charge of $0.00
This item requires a longer lead time. Please see Shipping Schedule for
"Linear Rails".
| ESD Safe | No |
| Weight | 0.109200 |
| Color | No |
| Series | Metric |
| Material | Zinc plated carbon steel |
| A | 1.800” (45.70mm) |
| B | .610” (15.50mm) |
| C | .950” (24.00mm) |
| D | .900” (22.90mm) |
| E | .080” (2.00mm) |
| F | .350” (9.00mm) |
| G | 1.380” (35.05mm) |
| Max Length (inches) | 236.200000 |
- Directly mount to T-Slot with mounting holes
- Compatible with 80/20 T-Slot profile series 10, 15, 25, 30, 40, 45
- Temperature Rating: 212° F
- Zinc plated carbon steel
- Comes with pre-drilled offset holes to mount to the T-Slot
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Weight 0.109200 Color No Series Metric Material Zinc plated carbon steel A 1.800” (45.70mm) B .610” (15.50mm) C .950” (24.00mm) D .900” (22.90mm) E .080” (2.00mm) F .350” (9.00mm) G 1.380” (35.05mm) Max Length (inches) 236.200000
-
- Description
- Directly mount to T-Slot with mounting holes
- Compatible with 80/20 T-Slot profile series 10, 15, 25, 30, 40, 45
- Temperature Rating: 212° F
- Zinc plated carbon steel
- Comes with pre-drilled offset holes to mount to the T-Slot
-
