6902

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	Fractional, Metric
    Material	Aluminum
    A	.250” (6.35mm)
    B	1.49” (37.84mm)
    C	.745” (18.92mm)
    D	6.375” (161.92mm)
    E	.375” (9.52mm)
    F	5.625” (142.87mm)
    G	M8 FHSCS
    H	.328” (8.33mm)
    Weight	0.237000

• Description
  • • Mount to Standard Carriage 30mm, 45mm

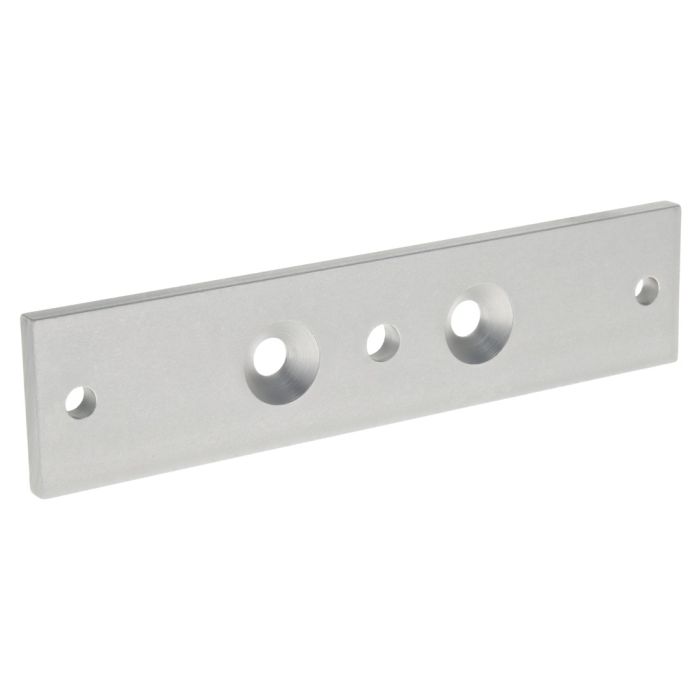

    • Flat (inline) plate
    • Easy assembly
    • Easy to adjust carriage preload
    • Silver anodized aluminum alloy
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3859	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	30-1961	2	M6 Slide-in Economy T-Nut - Offset Thread
    	11-6314	2	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3836	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13048	2	M6 Self-Aligning Slide-in T-Nut

    Mount Bracket to Carriage

    Series	Part Number	Qty	Description
    	11-8716	2	M8 x 16.00mm Flat Head Socket Cap Screw (FHSCS)

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
