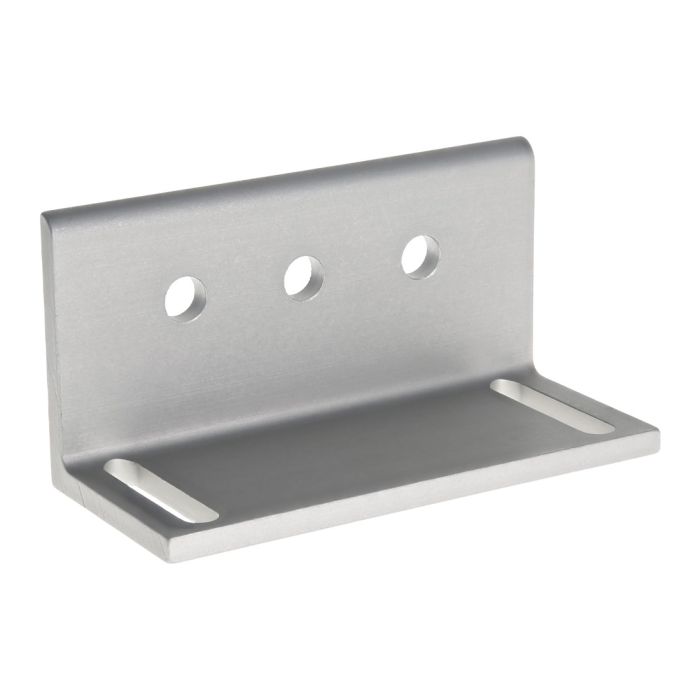

6903

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	Fractional, Metric
    Material	Aluminum
    A	2.000” (50.8mm)
    B	1.750” (44.45mm)
    C	.188” (4.77mm)
    D	4.000” (101.6mm)
    E	.328” (8.33mm)
    F	.375” (9.52mm)
    G	1.125” (28.57mm)
    H	.257” (6.53mm)
    J	3.250 (82.55mm)
    K	.375” (9.52mm)
    Weight	0.282000

• Description
  • • Mount to Standard Carriage 30mm, 45mm
    • Offset plate
    • Easy assembly
    • Easy to adjust carriage preload
    • Provides close bar to bar connections
    • Silver anodized aluminum alloy
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3859	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13048	2	M6 Self-Aligning Slide-in T-Nut
    	11-6314	2	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	30-1961	2	M6 Slide-in Economy T-Nut - Offset Thread
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3836	2	M6 Slide-in Economy T-Nut - Centered Thread

    Mount Bracket to Carriage

    Series	Part Number	Qty	Description
    	11-8318	2	M8 x 18.00mm Button Head Socket Cap Screw (BHSCS)
