Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	Fractional, Metric
    Material	Aluminum
    A	.188” (4.77mm)
    B	1.000” (25.40mm)
    C	.500” (12.70mm)
    D	5.000” (127.00mm)
    E	.375” (9.52mm)
    F	4.250” (107.95mm)
    G	M5 FHSCS
    H	.257” (6.52mm)
    Weight	0.094000

• Description
  • • Mount to Heavy Duty Carriage 30mm, 45mm

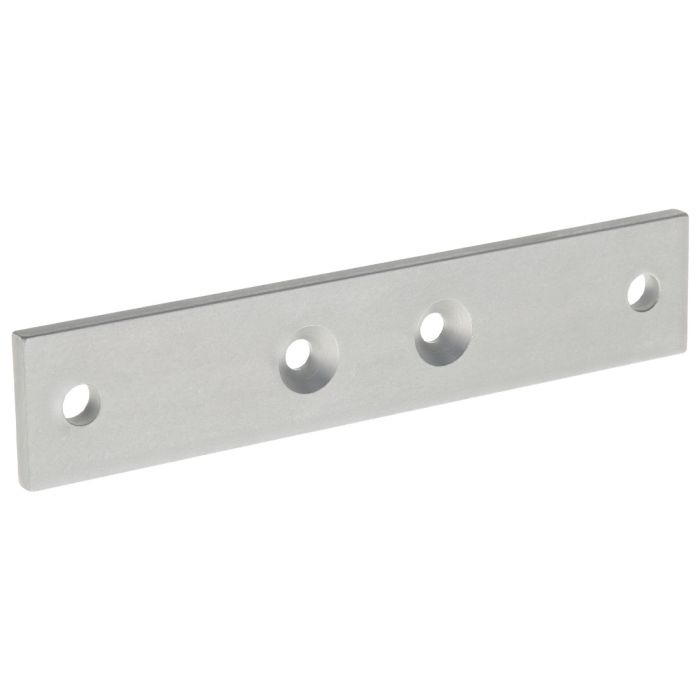

    • Flat (inline) plate
    • Easy assembly
    • Easy to adjust carriage preload
    • Silver anodized aluminum alloy
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3859	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	30-1961	2	M6 Slide-in Economy T-Nut - Offset Thread
    	11-6314	2	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3836	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13048	2	M6 Self-Aligning Slide-in T-Nut

    Mount Bracket to Carriage

    Series	Part Number	Qty	Description
    	11-5712	2	M5 x 12.00mm Flat Head Socket Cap Screw (FHSCS)
