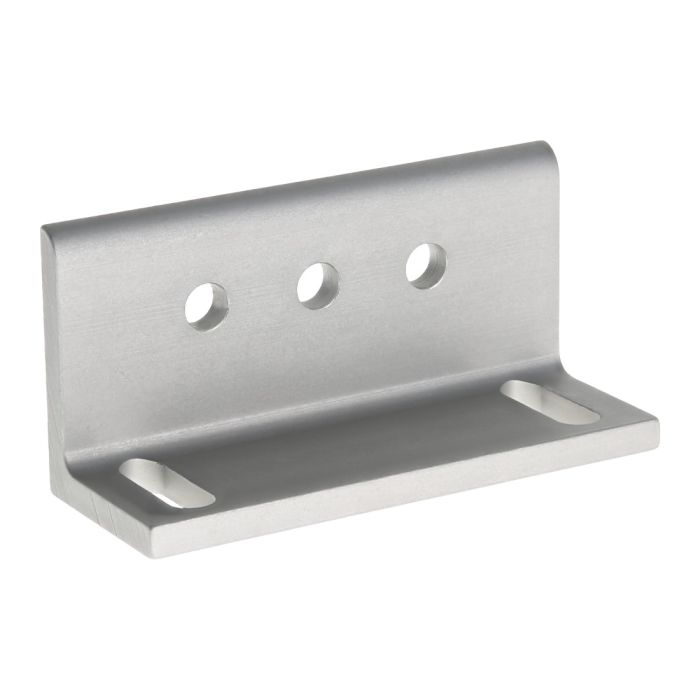

6901

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	Fractional, Metric
    Material	Aluminum
    A	1.500” (38.1mm)
    B	1.159” (29.43mm)
    C	.188” (4.77mm)
    D	3.150” (80.01mm)
    E	.257” (6.52mm)
    F	.375” (9.52mm)
    G	.534” (13.56mm)
    H	.257” (6.53mm)
    J	2.400” (60.96mm)
    K	.375” (9.52mm)
    Weight	0.163000

• Description
  • • Mount to Standard Carriage 30mm, 45mm
    • Offset plate
    • Easy assembly
    • Easy to adjust carriage preload
    • Provides close bar to bar connections
    • Silver anodized aluminum alloy
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3859	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6312	2	M6 x 12.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	30-1961	2	M6 Slide-in Economy T-Nut - Offset Thread
    	11-6314	2	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	3836	2	M6 Slide-in Economy T-Nut - Centered Thread
    	11-6316	2	M6 x 16.00mm Button Head Socket Cap Screw (BHSCS)
    			And
    	13048	2	M6 Self-Aligning Slide-in T-Nut

    Mount Bracket to Carriage

    Series	Part Number	Qty	Description
    	11-6314	2	M6 x 14.00mm Button Head Socket Cap Screw (BHSCS)
