25 & 40 Series Magnetic Door Catch Bracket
25 & 40 Series Magnetic Door Catch Bracket

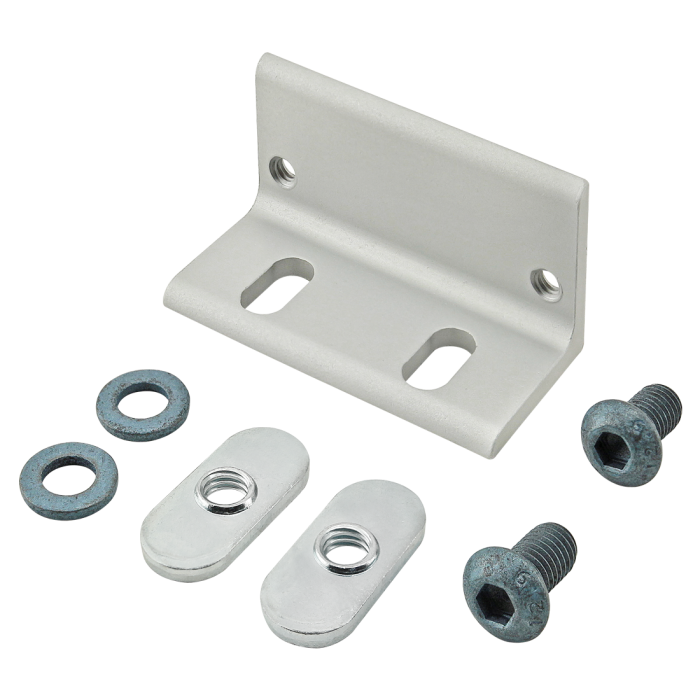

The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
25 & 40 Series Magnetic Door Catch Bracket
The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
Series | 25 Series, 40 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Clear |
Process | Milled |
A | 25.40mm |
B | 6.35mm |
C | 25.40mm |
D | 6.35mm |
E | 25.40mm |
F | 9.53mm |
G | 4.32mm |
H | 42.16mm |
J | 8-32 |
Weight | 0.082000 |
The magnetic door catch bracket is used to attach the magnet to a T-slotted profile door. All mounting hardware is included.
Series | Part Number | Qty | Description | Select Qty / Add To Cart |
---|---|---|---|---|
![]() ![]() | 13-6041 | 2 | 6.51mm ID Washer | |
![]() ![]() | 13-6312 | 2 | M6 x 12.00mm Button Head Socket Cap Screw (BHSCS) | |
![]() ![]() | 3859 | 2 | M6 Slide-in Economy T-Nut - Centered Thread |
