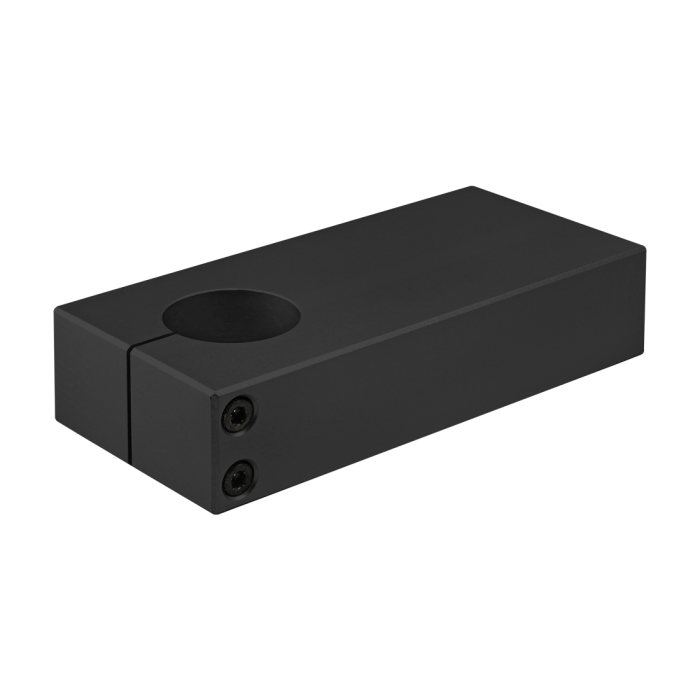

15 Series 1.5" Single Shaft Blank Stanchion Mounting Plate
15 Series 1.5" Single Shaft Blank Stanchion Mounting Plate
The single shaft blank stanchion mounting plate is commonly used with the aluminum tube profile to create a custom offset axis. The tube connects perpendicular to the mounted base to form the stanchion. The plate is aluminum, making it a strong and durable option. Clamp screws are included.
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 1.450" |
| B | 6.500" |
| C | .325" |
| D | .350" |
| E | .750" |
| F | 1/4-20 SHCS |
| G | 3.000" |
| H | 5.125" |
| J | n/a |
| K | 1.500" |
| L | 1.505" |
| Weight | 2.501000 |
