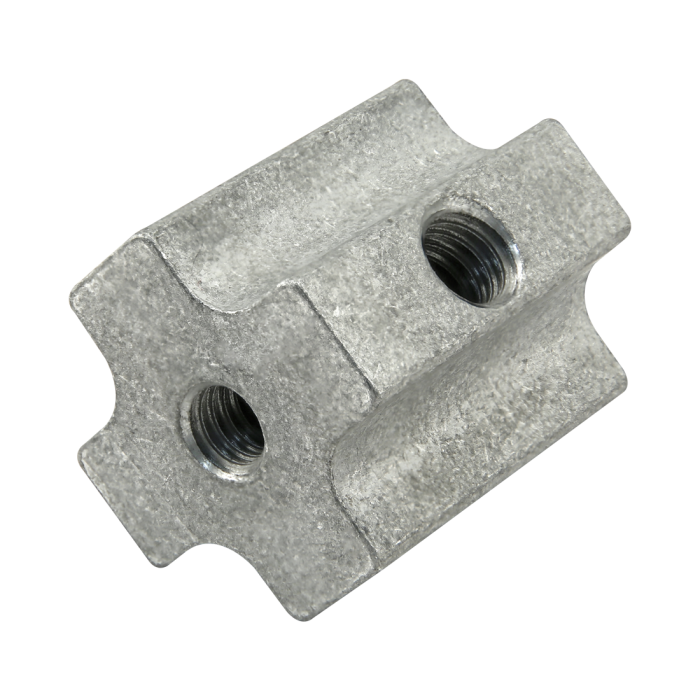

Standard Tube Insert
Standard Tube Insert
The standard tube insert is used to make strong connections between Ready Tube profiles. It connects profiles together when their lengths are divisible by 1.50”. The standard tube insert requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
The standard tube insert is used to make strong connections between Ready Tube profiles. It connects profiles together when their lengths are divisible by 1.50”. The standard tube insert requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | Ready Tube |
| Material | Aluminum |
| Finish | Mill |
| A | 1.225" |
| B | .382" |
| C | .459" |
| D | .613" |
| E (Thread) | M8 x 1.25 |
| F | 1.440" |
| G | .720" |
| H | M8 x 1.25 |
| Weight | 0.112000 |
The standard tube insert is used to make strong connections between Ready Tube profiles. It connects profiles together when their lengths are divisible by 1.50”. The standard tube insert requires no additional machining services when used in Ready Tube profiles with predrilled holes. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 13-3943 | 1 | M8 x 30.00mm Button Head Socket Cap Screw (BHSCS) |
| 13-3945 | 1 | M8 x 45.00mm Button Head Socket Cap Screw (BHSCS) |
