Product Specs

• Product Details
  •

    Series	Ready Tube
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Clear
    Drop Lock	N/A
    Moment of Inertia - IX	N/A
    Moment of Inertia - IY	N/A
    Surface Area	0.6775 Sq. in.
    Yield Strength	35,000 psi.
    Modulus of Elasticity	10,200,000 Lbs / Sq. In.
    Weight lbs	0.0660 per inch
    Weight	0.066000
    XDIY Download Project Name	N/A

• Description

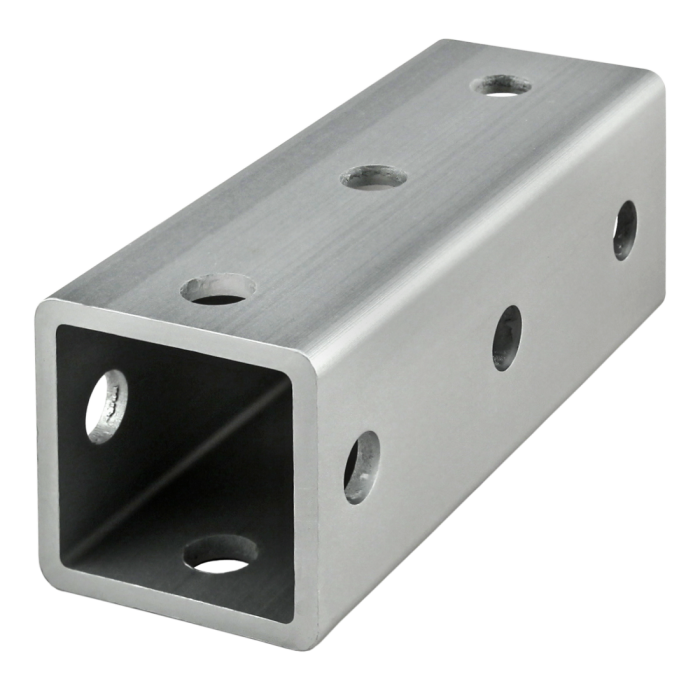

  • 9701 is a 1.50” x 1.50” square Ready Tube profile with pre-drilled holes at 1.50” intervals along each face. The pre-drilled holes in this profile lend it to applications such as gravity racks, conveyor tables and material handling shelves.
