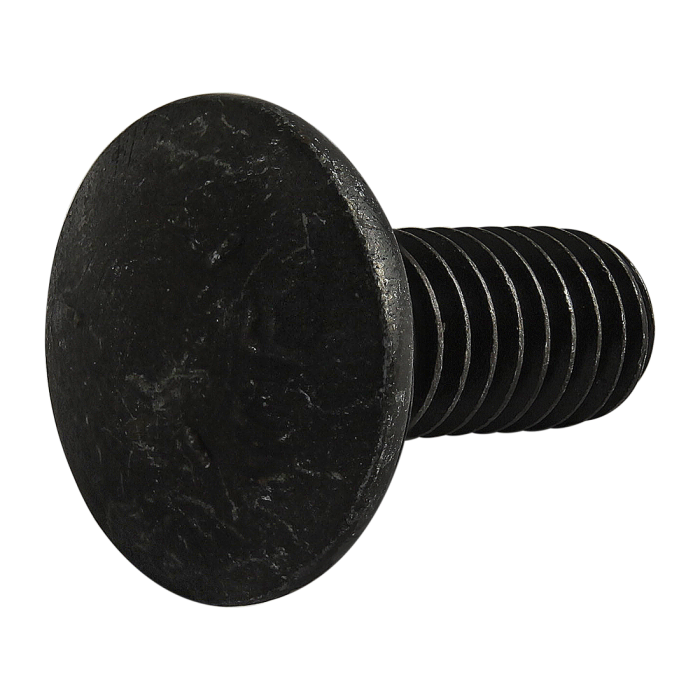

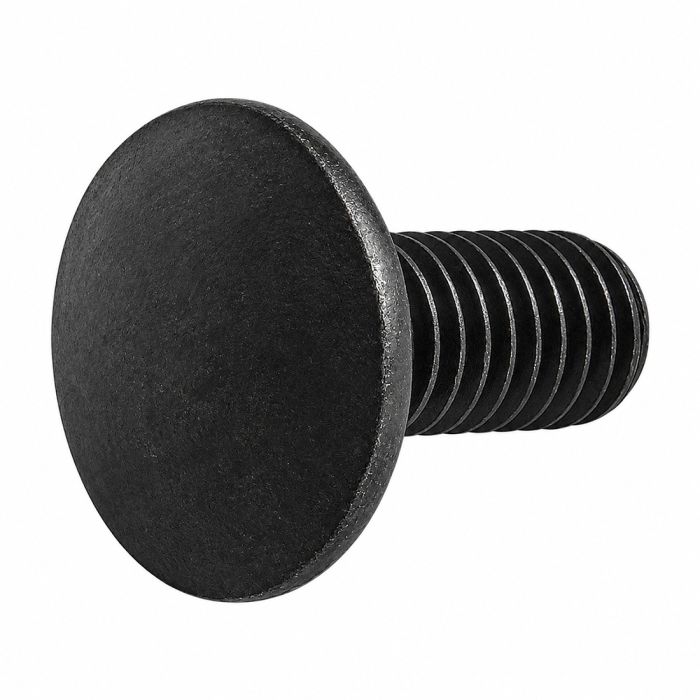

40-3116

Product Specs

• Product Details
  •

    Series	40 Series
    Material	Steel
    Finish	Zinc
    Color	Black
    A	22.75mm
    B	3.50mm
    C (Thread)	5/16-18
    D (Length)	19.05mm
    E	17.75mm
    F	7.80mm
    Weight	0.026000
