40-2799

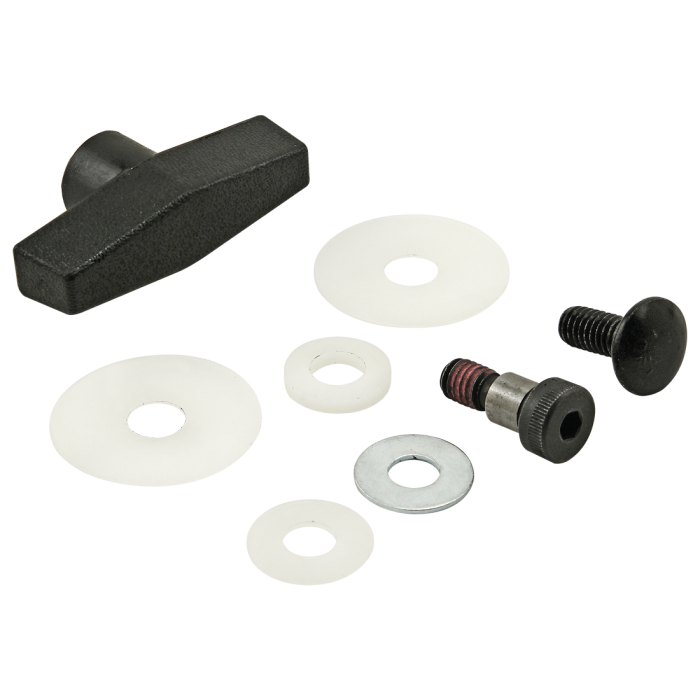

40 Series "T" Handle Kit - Dynamic Pivot
40 Series "T" Handle Kit - Dynamic Pivot
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
| ESD Safe | No |
| Series | 40 Series |
| Material | Steel / Polyproylene |
| Finish | Zinc / Matte |
| Color | Black |
| A | 49.94mm |
| B | 63.26mm |
| C | 34.29mm |
| D | 19.05mm |
| E | 3.56mm |
| F | 17.88mm |
| Weight | 0.125000 |
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 40 Series Material Steel / Polyproylene Finish Zinc / Matte Color Black A 49.94mm B 63.26mm C 34.29mm D 19.05mm E 3.56mm F 17.88mm Weight 0.125000
-
- Description
The "T" handle kit adds an adjustable stop to a dynamic pivot by securing it into a semi-permanent position and adds a grip to aid with adjustments. All mounting hardware is included.
-
