40-2731

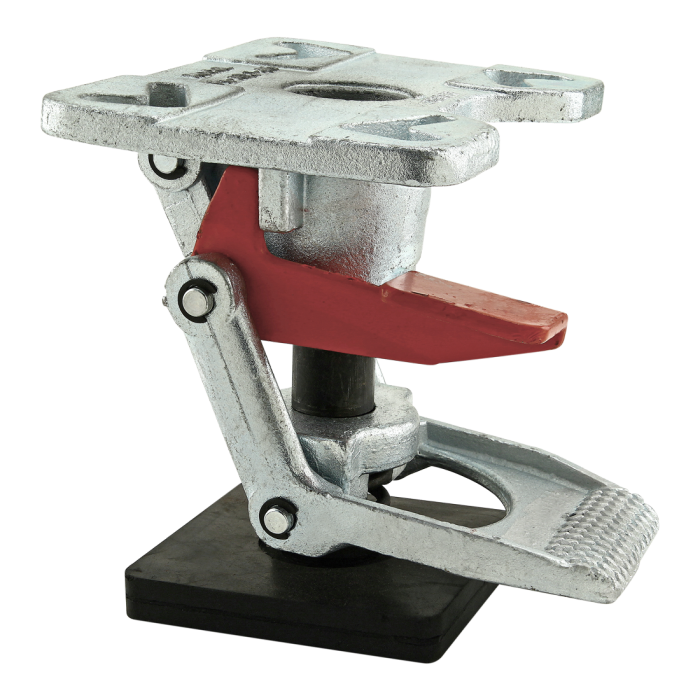

Adjustable Position Floor Lock
Adjustable Position Floor Lock
The adjustable position floor lock uses a spring-loaded rubber foot pad to immobilize equipment. It is commonly used to keep frames from shifting and has a foot that can adjust up to 2.75 inches (69.85mm), allowing greater design flexibility. The adjustable position floor lock has a foot release lever and commonly mounts to a T-slot profile side using a position floor lock base plate. There is a minimum weight requirement of 70 pounds (31.75 kg) necessary to properly immobilize equipment. By adjusting the tension nut, the holding force can be increased from 70 (31.75 kg) to 120 pounds (54.43 kg).
The adjustable position floor lock uses a spring-loaded rubber foot pad to immobilize equipment. It is commonly used to keep frames from shifting and has a foot that can adjust up to 2.75 inches (69.85mm), allowing greater design flexibility. The adjustable position floor lock has a foot release lever and commonly mounts to a T-slot profile side using a position floor lock base plate. There is a minimum weight requirement of 70 pounds (31.75 kg) necessary to properly immobilize equipment. By adjusting the tension nut, the holding force can be increased from 70 (31.75 kg) to 120 pounds (54.43 kg).
| ESD Safe | No |
| Series | Metric |
| Material | Steel Casting |
| Finish | Paint |
| A | 114.30mm |
| B | 84.30mm |
| C | 76.00mm |
| D | 54.80mm |
| E | 74.50mm |
| F | 123.70mm |
| G | 12.80mm |
| H | 165.10mm |
| J | 12.50mm |
| K | 9.50mm |
| L | 139.70mm |
| M | 158.75mm |
| N | 203.20mm |
| Load Capacity | 54.43 kg |
| Weight | 7.128000 |
The adjustable position floor lock uses a spring-loaded rubber foot pad to immobilize equipment. It is commonly used to keep frames from shifting and has a foot that can adjust up to 2.75 inches (69.85mm), allowing greater design flexibility. The adjustable position floor lock has a foot release lever and commonly mounts to a T-slot profile side using a position floor lock base plate. There is a minimum weight requirement of 70 pounds (31.75 kg) necessary to properly immobilize equipment. By adjusting the tension nut, the holding force can be increased from 70 (31.75 kg) to 120 pounds (54.43 kg).
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 13-1525 | 4 | M10 x 25.00mm Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
ESD Safe No Series Metric Material Steel Casting Finish Paint A 114.30mm B 84.30mm C 76.00mm D 54.80mm E 74.50mm F 123.70mm G 12.80mm H 165.10mm J 12.50mm K 9.50mm L 139.70mm M 158.75mm N 203.20mm Load Capacity 54.43 kg Weight 7.128000
-
- Description
The adjustable position floor lock uses a spring-loaded rubber foot pad to immobilize equipment. It is commonly used to keep frames from shifting and has a foot that can adjust up to 2.75 inches (69.85mm), allowing greater design flexibility. The adjustable position floor lock has a foot release lever and commonly mounts to a T-slot profile side using a position floor lock base plate. There is a minimum weight requirement of 70 pounds (31.75 kg) necessary to properly immobilize equipment. By adjusting the tension nut, the holding force can be increased from 70 (31.75 kg) to 120 pounds (54.43 kg).
-
Sugg. Hardware
Mount to Base Plate
Series Part Number Qty Description 13-1525 4 M10 x 25.00mm Socket Head Cap Screw (SHCS)
-
