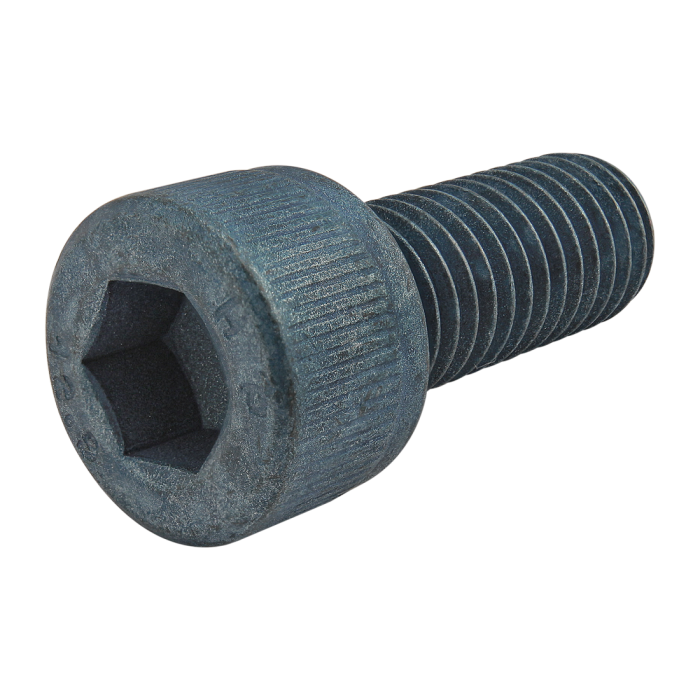

13-1525

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	15.87mm
    B	8.00mm
    C	9.82mm
    D (Length)	25.00mm
    E (Thread)	M10 X 1.50
    Thread Length	Full Thread
    Weight	0.053000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
