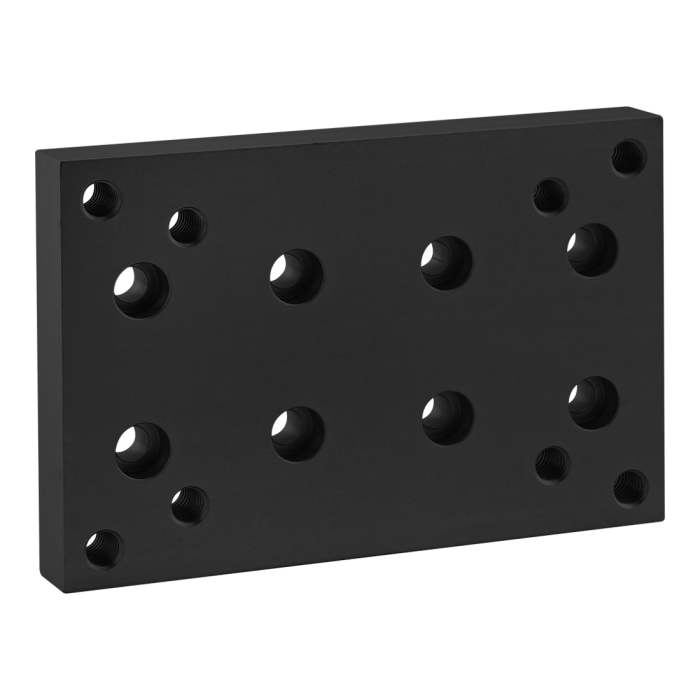

40 Series Position Floor Lock Base Plate
The position floor lock base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount position floor locks for an added layer of strength and durability. It requires a tap to mount to a profile end.
| ESD Safe | Yes |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Milled |
| Finish | Anodize |
| Color | Black |
| A | 30.00mm |
| B | 8.73mm |
| C | 16.68mm |
| D | 158.00mm |
| E | 133.34mm |
| F | 92.00mm |
| G | 40.00mm |
| H | 82.54mm |
| J | 66.64mm |
| K | 40.00mm |
| L | M8 SHCS |
| M | M10 x 1.50 |
| N | 33.00mm |
| P | 19.00mm |
| Q | 12.33mm |
| R | 19.00mm |
| S | 100.00mm |
| Weight | 1.633000 |
The position floor lock base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount position floor locks for an added layer of strength and durability. It requires a tap to mount to a profile end.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3430 | 4 To 8 | Bolt Assembly: M8 x 20.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 13-8530 | 4 To 8 | M8 x 30.00mm Socket Head Cap Screw (SHCS) |
