30-2569

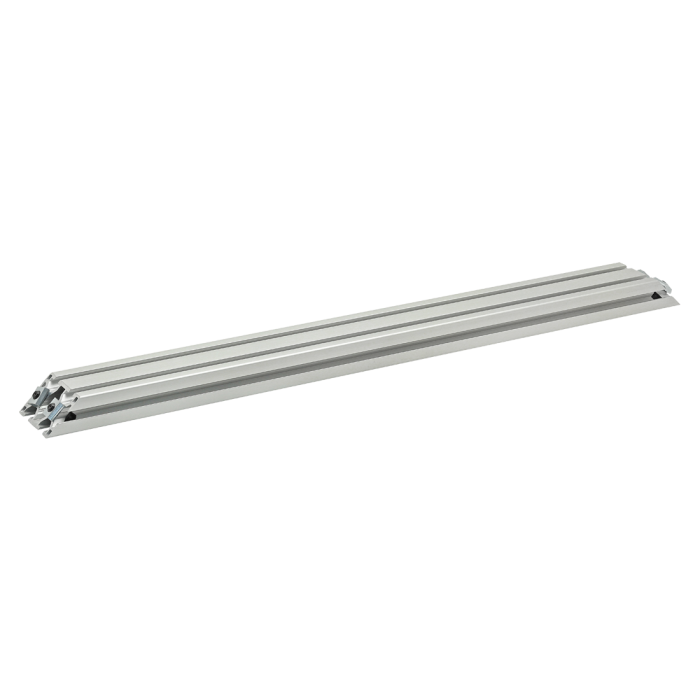

30-3060 45 Degree Support, 640mm Long
30-3060 45 Degree Support, 640mm Long
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Total Price
................................................................................................................................| Series | 30 Series |
| Profile | 30-3060 |
| A | 30.00mm |
| B | 60.00mm |
| C | 640.00mm |
| Weight | 2.441600 |
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-8516 | 4 | M8 x 16.00mm Socket Head Cap Screw (SHCS) |
   | 13025 | 4 | M8 Self-Aligning Slide-in T-Nut |
| 11-6042 | 4 | 8.51mm ID Washer |
Product Specs
- Product Details
-
Series 30 Series Profile 30-3060 A 30.00mm B 60.00mm C 640.00mm Weight 2.441600
-
- Description
The 45 degree support assembly includes socket head cap screws, washers and T-nuts. The support assembly is pre-machined with counterbores and a 45 degree miter angle on both ends. This fastening method provides a clean, flush connection and is typically used to reinforce a 90 degree connection. This connection lends itself to applications with heavy loads to minimize beam deflection.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 11-8516 4 M8 x 16.00mm Socket Head Cap Screw (SHCS)
13025 4 M8 Self-Aligning Slide-in T-Nut
11-6042 4 8.51mm ID Washer
