25-2419

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	25 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    A	44.50mm
    B	9.00mm
    C	95.00mm
    D	10.20mm
    E	74.60mm
    F	18.75mm
    G	25.00mm
    H	M8 x 1.25
    J	M6 SHCS
    K	35.00mm
    L	12.00mm
    M	62.50mm
    Weight	0.397000

• Description

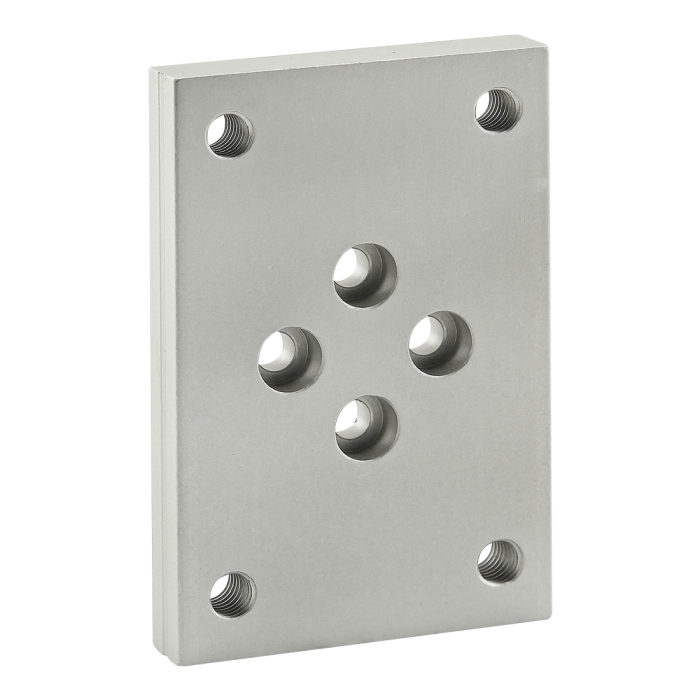

  • The flange mount caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount casters for an added layer of strength and durability. It requires a tap to mount to the profile end.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3412	4	Bolt Assembly: M6 x 12.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	13-6516	4	M6 x 16.00mm Socket Head Cap Screw (SHCS)

• CAD Files
• CAD Files
  • CAD Download
