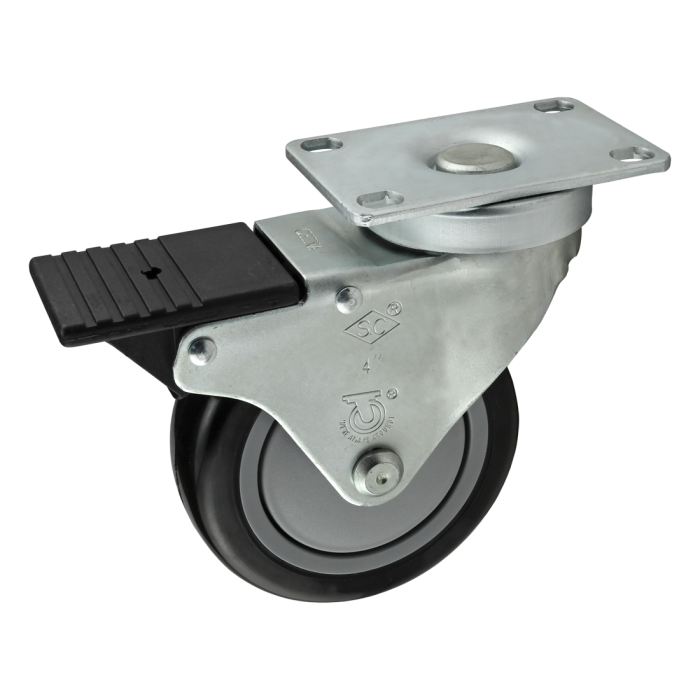

Deluxe Flange Mount Swivel Caster: 4.00" with Brake
Deluxe Flange Mount Swivel Caster: 4.00" with Brake
The deluxe flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The polyurethane wheels and hardened raceways enable a smooth motion while the swivel allows easy movement and pivot turns. The deluxe flange mount caster includes a brake. It is ideal for use in industrial settings such as mobile carts and material handling solutions.
The deluxe flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The polyurethane wheels and hardened raceways enable a smooth motion while the swivel allows easy movement and pivot turns. The deluxe flange mount caster includes a brake. It is ideal for use in industrial settings such as mobile carts and material handling solutions.
Total Price
................................................................................................................................| Series | Fractional, Metric, Ready Tube |
| Material | Steel / Polyurethane |
| Finish | Zinc |
| Color | Black on Gray |
| A | 3.625" (92.08mm) |
| B | 3.000" (76.20mm) |
| C | 2.875" (73.03mm) |
| D | 2.375" (60.33mm) |
| E | 1.750" (44.45mm) |
| F | 0.328" (8.33mm) |
| G | .313" (7.94mm) |
| H | 4.625" (117.48mm) |
| J | 5.125" (130.18mm) |
| K | 4.000" (101.60mm) |
| Load Height | 5.125" (130.18mm) |
| Load Capacity | 350.00 lb (158.76 kg) |
| Weight | 1.997000 |
The deluxe flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The polyurethane wheels and hardened raceways enable a smooth motion while the swivel allows easy movement and pivot turns. The deluxe flange mount caster includes a brake. It is ideal for use in industrial settings such as mobile carts and material handling solutions.
Mount to Base Plate
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3110 | 4 | 5/16-18 x .625" Socket Head Cap Screw (SHCS) |
 | 11-8512 | 4 | M8 x 12.00mm Socket Head Cap Screw (SHCS) |
Mount to RT Profile
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3960 | 2 | Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc |
Product Specs
- Product Details
-
Series Fractional, Metric, Ready Tube Material Steel / Polyurethane Finish Zinc Color Black on Gray A 3.625" (92.08mm) B 3.000" (76.20mm) C 2.875" (73.03mm) D 2.375" (60.33mm) E 1.750" (44.45mm) F 0.328" (8.33mm) G .313" (7.94mm) H 4.625" (117.48mm) J 5.125" (130.18mm) K 4.000" (101.60mm) Load Height 5.125" (130.18mm) Load Capacity 350.00 lb (158.76 kg) Weight 1.997000
-
- Description
The deluxe flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The polyurethane wheels and hardened raceways enable a smooth motion while the swivel allows easy movement and pivot turns. The deluxe flange mount caster includes a brake. It is ideal for use in industrial settings such as mobile carts and material handling solutions.
-
Sugg. Hardware
Mount to Base Plate
Series Part Number Qty Description 3110 4 5/16-18 x .625" Socket Head Cap Screw (SHCS)
11-8512 4 M8 x 12.00mm Socket Head Cap Screw (SHCS)
Mount to RT Profile
Series Part Number Qty Description 3960 2 Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc
