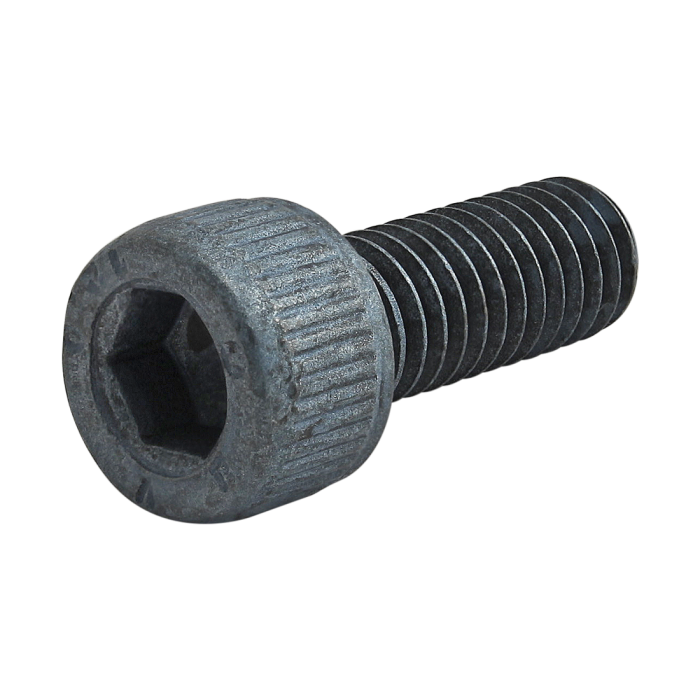

13-6516

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	9.89mm
    B	5.00mm
    C	5.85mm
    D (Length)	16.00mm
    E (Thread)	M6 X 1.0
    Thread Length	Full Thread
    Weight	0.012000
