2169-Black

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	10 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Black
    A	2.875"
    B	1.500"
    C	1.000"
    D	.500"
    E	2.000"
    F	1.000"
    G	.500"
    H	1/4 SHCS
    J	3/8-16
    K	.390"
    L	1.000"
    M	.500"
    N	3.500"
    Weight	0.308000

• Description

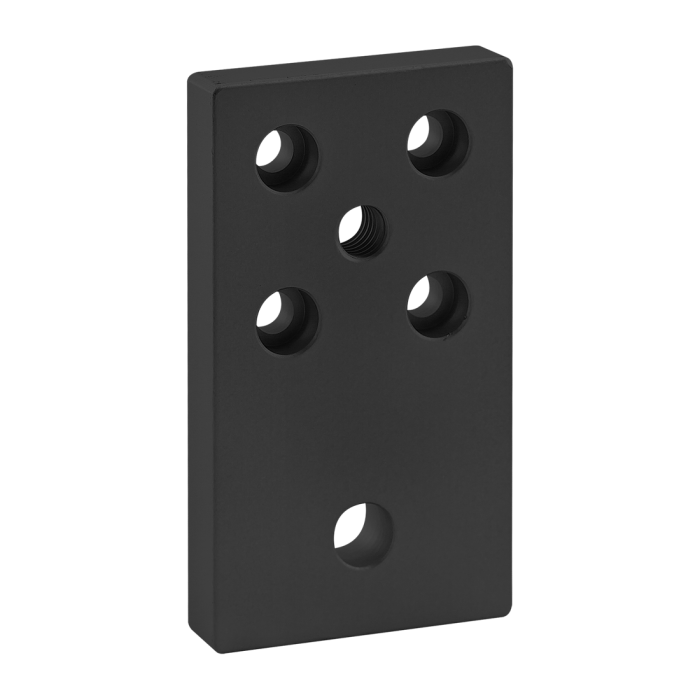

  • The 6 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. A tap is required to mount to the profile end.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3491	4	Bolt Assembly: 1/4-20 x .500" Black SHCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	3064	4	1/4-20 x .750" Socket Head Cap Screw (SHCS)
