2034

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	10 Series, 25 Series
    Material	Aluminum
    Grade	6063-T6
    Finish	Anodize
    Color	Clear
    A	2.764"
    B	2.764"
    C	.188"
    D	.500"
    E	.257"
    F	3.500"
    G	4.000"
    H	1.000"
    J	2.146"
    K	1.000"
    L	.903"
    Weight	0.402000

• Description
  • • Secure and concealed latch that provides a firm and reliable hold for doors, cabinets, and other enclosures.
    • Maintains a clean, aesthetic look for situations where a traditional handle or visible latch is not desired.

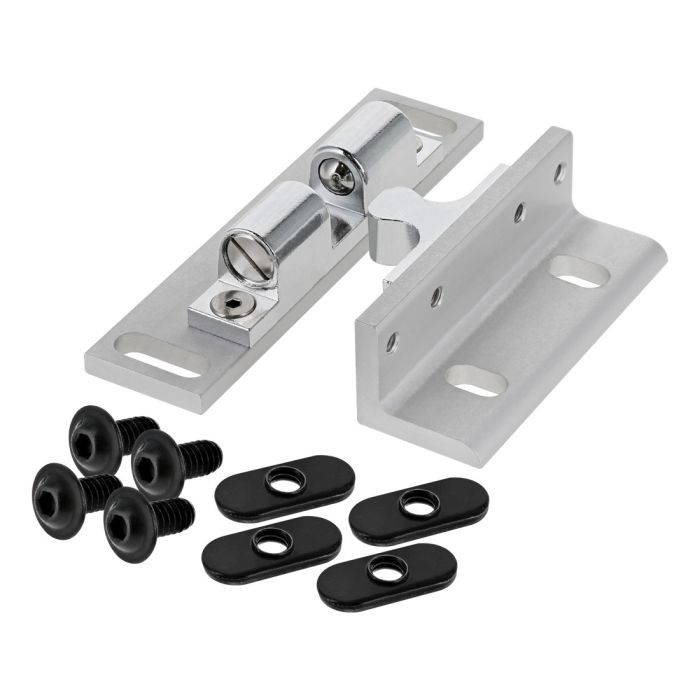

    • Ball latch on aluminum bracket for 10 & 25 series t-slotted profiles and includes all mounting hardware.
    • Straight-forward installation that requires no machining.
• Incl. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3342	4	1/4-20 x .500" Flanged Button Head Socket Cap Screw (FBHSCS)
    			And
    	3382	4	1/4-20 Slide-in Economy T-Nut - Centered Thread
